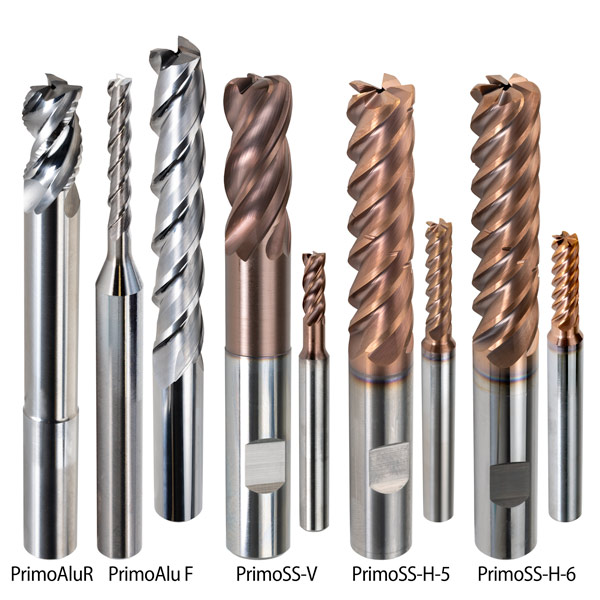

PrimoLine... Premium Solid Carbide End Mills from Ingersoll
Features and Benefits
- Available Coolant through (Ø.250" and larger - Ø.3125" and larger for PrimoSS-H) to assist with chip control and heat
- Unique geometry with variable pitch and variable helix assists vibration control, particularly in long reach applications
- Custom tools available
- PrimoAluR
- 3-flute 90° SCEM for rough machining in aluminum alloys
- Serrated cutting edge provides unique chip management, disrupts vibrations, and reduces heat
- PrimoAluF
- 3-flute 90° SCEM for finish machining in aluminum alloys
- 4x, 5x, 6x, and 7xD depth-of-cut (APMX) maximum provides a deep reach capability
- PrimoSS-V
- 4-flute 90° SCEM for various machining in stainless
- Up to 4xD usable length (LUX) provides a deep reach capability
- PrimoSS-H
- 5- and 6-flute 90° SCEM for HEM in stainless

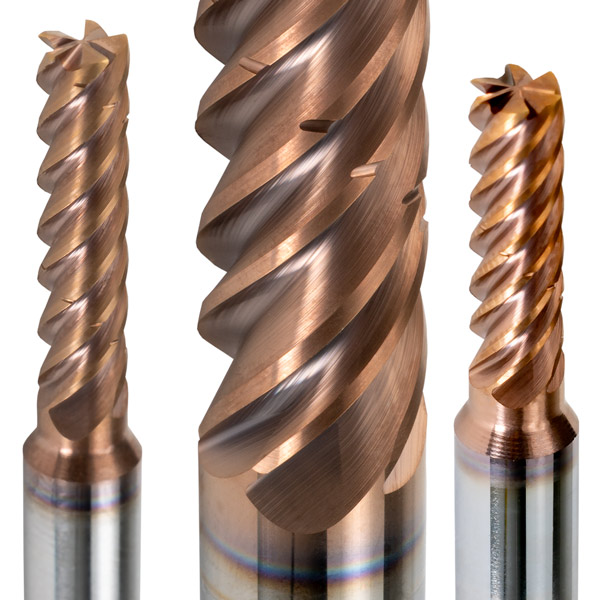

- Chip splitter cutting edge provides unique chip management, disrupts vibrations, and reduces heat
- 2x, 3x, and up to 4xD depth-of-cut (APMX) maximum provides a deep reach capability
Product Ranges & Details
Geometry
PrimoAluR: 3-flute, coolant thru with a serrated cutting edge, variable pitch, variable helix
PrimoAluF: 3-flute, coolant thru (Ø.250" and larger), variable pitch, variable helix
PrimoSS-V: 4-flute, coolant thru (Ø.250" and larger), variable pitch, variable helix
PrimoSS-H: 5 and 6-flute, coolant thru (Ø.3125" and larger), variable pitch, variable helix
Diameter Range
PrimoAluR: .250–1.000"
PrimoAluR: .125–1.000"
PrimoSS-V: .125–.750"
PrimoSS-H: .125–1.000"
Depth of Cut
PrimoAluR: 1.5xD and 2xD APMX
PrimoAluF: 4x, 5x, 6x, and 7xD APMX
PrimoSS-V: 2xD APMX and up to 4xD LUX
PrimoSS-H: 2x, 3x, and 4xD APMX
Grade
PrimoAlu: IN05S
PrimoSS: IN2205 (multi-layer PVD AlTiSiN)
Corner Radius
PrimoAluR: .015", .030", .060", .090", .125", .188", .250"
PrimoAluF: .008", .015", .030", .060", .090", .125"
PrimoSS-V: Sharp, .008", .015", .030", .060", .090", .125"
PrimoSS-H: .004", .008", .015", .030", .060", .125"
Materials:
PrimoAlu:
Aluminum Alloys
PrimoSS:
Stainless Steel
