Series: P3N2R-W (Primo-Alu_R) - 3-Flute 90° SCEM Weldon

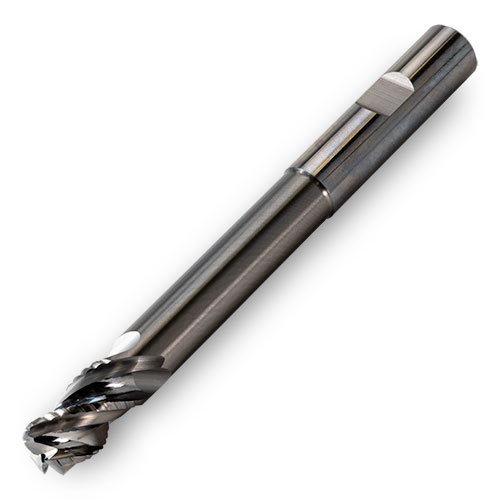

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- (Primo-Alu_R) for Roughing Aluminum
- Ø.250"-1.000"
- Weldon flat shank, Coolant through
- 3-Flute
- Serrated cutting edge
- Variable Pitch
- Variable Helix
- 1.5xD & 2xD APMX, and up to 6xD LUX
- Corner Radius: .015" .030" .060" .090" .125" .188" .250" R

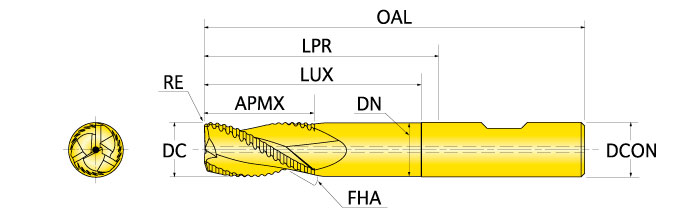

EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
LPR Projection Length |
OAL Overall Length |
ZEFF Eff. Teeth |
DN Neck Dia. |
DCON Shank Dia. |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927281 | P3N2R-.250A037L125R015W | 0.2500 | 0.015 R | 0.375 | 1.250 | 5× | 1.590 | 2.75 | 3 | 0.222 | 0.250 | 3.5 | NA | |||
| 1927282 | P3N2R-.312A046L156R015W | 0.3125 | 0.015 R | 0.469 | 1.563 | 5× | 2.120 | 3.50 | 3 | 0.285 | 0.313 | 3.5 | NA | |||
| 1927283 | P3N2R-.375A056L187R015W | 0.3750 | 0.015 R | 0.562 | 1.875 | 5× | 2.220 | 3.75 | 3 | 0.347 | 0.375 | 3.5 | NA | |||
| 1927284 | P3N2R-.500A100L200R015W | 0.5000 | 0.015 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927285 | P3N2R-.500A075L250R015W | 0.5000 | 0.015 R | 0.750 | 2.500 | 5× | 2.600 | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927286 | P3N2R-.500A075L300R015W | 0.5000 | 0.015 R | 0.750 | 3.000 | 6× | 3.100 | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927290 | P3N2R-.500A100L200R030W | 0.5000 | 0.030 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927291 | P3N2R-.500A075L250R030W | 0.5000 | 0.030 R | 0.750 | 2.500 | 5× | 2.600 | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927292 | P3N2R-.500A075L300R030W | 0.5000 | 0.030 R | 0.750 | 3.000 | 6× | 3.100 | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927287 | P3N2R-.500A100L200R060W | 0.5000 | 0.060 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927288 | P3N2R-.500A075L250R060W | 0.5000 | 0.060 R | 0.750 | 2.500 | 5× | 2.600 | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927289 | P3N2R-.500A075L300R060W | 0.5000 | 0.060 R | 0.750 | 3.000 | 6× | 3.100 | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927293 | P3N2R-.500A100L200R090W | 0.5000 | 0.090 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927294 | P3N2R-.500A075L250R090W | 0.5000 | 0.090 R | 0.750 | 2.500 | 5× | 2.600 | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927295 | P3N2R-.500A075L300R090W | 0.5000 | 0.090 R | 0.750 | 3.000 | 6× | 3.100 | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927296 | P3N2R-.500A100L200R125W | 0.5000 | 0.125 R | 1.000 | 2.000 | 4× | 2.100 | 3.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927297 | P3N2R-.500A075L250R125W | 0.5000 | 0.125 R | 0.750 | 2.500 | 5× | 2.600 | 4.38 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927298 | P3N2R-.500A075L300R125W | 0.5000 | 0.125 R | 0.750 | 3.000 | 6× | 3.100 | 4.88 | 3 | 0.472 | 0.500 | 4.0 | NA | |||
| 1927307 | P3N2R-.625A125L250R015W | 0.6250 | 0.015 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927308 | P3N2R-.625A093L312R015W | 0.6250 | 0.015 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927309 | P3N2R-.625A093L375R015W | 0.6250 | 0.015 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927302 | P3N2R-.625A093L125R030W | 0.6250 | 0.030 R | 0.938 | 1.250 | 2× | 1.360 | 3.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927303 | P3N2R-.625A125L187R030W | 0.6250 | 0.030 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927299 | P3N2R-.625A125L250R030W | 0.6250 | 0.030 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927300 | P3N2R-.625A093L312R030W | 0.6250 | 0.030 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927301 | P3N2R-.625A093L375R030W | 0.6250 | 0.030 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927304 | P3N2R-.625A125L250R060W | 0.6250 | 0.060 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927305 | P3N2R-.625A093L312R060W | 0.6250 | 0.060 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927306 | P3N2R-.625A093L375R060W | 0.6250 | 0.060 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927310 | P3N2R-.625A125L250R090W | 0.6250 | 0.090 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927311 | P3N2R-.625A093L312R090W | 0.6250 | 0.090 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927312 | P3N2R-.625A093L375R090W | 0.6250 | 0.090 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927316 | P3N2R-.625A093L125R125W | 0.6250 | 0.125 R | 0.938 | 1.250 | 2× | 1.360 | 3.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927317 | P3N2R-.625A125L187R125W | 0.6250 | 0.125 R | 1.250 | 1.875 | 3× | 2.110 | 4.00 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927313 | P3N2R-.625A125L250R125W | 0.6250 | 0.125 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927314 | P3N2R-.625A093L312R125W | 0.6250 | 0.125 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927315 | P3N2R-.625A093L375R125W | 0.6250 | 0.125 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927318 | P3N2R-.625A125L250R188W | 0.6250 | 0.188 R | 1.250 | 2.500 | 4× | 2.610 | 4.50 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927319 | P3N2R-.625A093L312R188W | 0.6250 | 0.188 R | 0.938 | 3.125 | 5× | 3.360 | 5.25 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927320 | P3N2R-.625A093L375R188W | 0.6250 | 0.188 R | 0.938 | 3.750 | 6× | 3.860 | 5.75 | 3 | 0.597 | 0.625 | 4.0 | NA | |||
| 1927324 | P3N2R-.750A112L150R030W | 0.7500 | 0.030 R | 1.125 | 1.500 | 2× | 1.740 | 3.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927325 | P3N2R-.750A150L225R030W | 0.7500 | 0.030 R | 1.500 | 2.250 | 3× | 2.360 | 4.38 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927321 | P3N2R-.750A150L300R030W | 0.7500 | 0.030 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927322 | P3N2R-.750A112L375R030W | 0.7500 | 0.030 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927323 | P3N2R-.750A112L450R030W | 0.7500 | 0.030 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927326 | P3N2R-.750A150L300R060W | 0.7500 | 0.060 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927327 | P3N2R-.750A112L375R060W | 0.7500 | 0.060 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927328 | P3N2R-.750A112L450R060W | 0.7500 | 0.060 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927329 | P3N2R-.750A150L300R090W | 0.7500 | 0.090 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927330 | P3N2R-.750A112L375R090W | 0.7500 | 0.090 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927331 | P3N2R-.750A112L450R090W | 0.7500 | 0.090 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927335 | P3N2R-.750A112L150R125W | 0.7500 | 0.125 R | 1.125 | 1.500 | 2× | 1.740 | 3.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927336 | P3N2R-.750A150L225R125W | 0.7500 | 0.125 R | 1.500 | 2.250 | 3× | 2.360 | 4.38 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927332 | P3N2R-.750A150L300R125W | 0.7500 | 0.125 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927333 | P3N2R-.750A112L375R125W | 0.7500 | 0.125 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927334 | P3N2R-.750A112L450R125W | 0.7500 | 0.125 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927337 | P3N2R-.750A150L300R188W | 0.7500 | 0.188 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927338 | P3N2R-.750A112L375R188W | 0.7500 | 0.188 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927339 | P3N2R-.750A112L450R188W | 0.7500 | 0.188 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927340 | P3N2R-.750A150L300R250W | 0.7500 | 0.250 R | 1.500 | 3.000 | 4× | 3.240 | 5.25 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927341 | P3N2R-.750A112L375R250W | 0.7500 | 0.250 R | 1.125 | 3.750 | 5× | 3.990 | 6.00 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927342 | P3N2R-.750A112L450R250W | 0.7500 | 0.250 R | 1.125 | 4.500 | 6× | 4.740 | 6.75 | 3 | 0.722 | 0.750 | 4.0 | NA | |||
| 1927346 | P3N2R-1.00A150L200R030W | 1.0000 | 0.030 R | 1.500 | 2.000 | 2× | 2.110 | 4.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927347 | P3N2R-1.00A200L300R030W | 1.0000 | 0.030 R | 2.000 | 3.000 | 3× | 3.110 | 5.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927343 | P3N2R-1.00A200L400R030W | 1.0000 | 0.030 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927344 | P3N2R-1.00A150L500R030W | 1.0000 | 0.030 R | 1.500 | 5.000 | 5× | 5.110 | 7.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927345 | P3N2R-1.00A150L600R030W | 1.0000 | 0.030 R | 1.500 | 6.000 | 6× | 6.110 | 8.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927348 | P3N2R-1.00A200L400R060W | 1.0000 | 0.060 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927349 | P3N2R-1.00A150L600R060W | 1.0000 | 0.060 R | 1.500 | 6.000 | 6× | 6.240 | 8.50 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927350 | P3N2R-1.00A200L400R090W | 1.0000 | 0.090 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927351 | P3N2R-1.00A150L500R090W | 1.0000 | 0.090 R | 1.500 | 5.000 | 5× | 5.110 | 7.38 | 3 | 0.972 | 1.000 | 4.0 | NA | |||
| 1927352 | P3N2R-1.00A150L600R090W | 1.0000 | 0.090 R | 1.500 | 6.000 | 6× | 6.240 | 8.50 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927356 | P3N2R-1.00A150L225R125W | 1.0000 | 0.125 R | 1.500 | 2.250 | 2× | 2.360 | 4.63 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927357 | P3N2R-1.00A200L300R125W | 1.0000 | 0.125 R | 2.000 | 3.000 | 3× | 3.110 | 5.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927353 | P3N2R-1.00A200L400R125W | 1.0000 | 0.125 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927354 | P3N2R-1.00A150L500R125W | 1.0000 | 0.125 R | 1.500 | 5.000 | 5× | 5.110 | 7.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927355 | P3N2R-1.00A150L600R125W | 1.0000 | 0.125 R | 1.500 | 6.000 | 6× | 6.110 | 8.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927358 | P3N2R-1.00A200L400R188W | 1.0000 | 0.188 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927359 | P3N2R-1.00A150L600R188W | 1.0000 | 0.188 R | 1.500 | 6.000 | 6× | 6.240 | 8.50 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927360 | P3N2R-1.00A200L400R250W | 1.0000 | 0.250 R | 2.000 | 4.000 | 4× | 4.110 | 6.38 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA | ||
| 1927361 | P3N2R-1.00A150L600R250W | 1.0000 | 0.250 R | 1.500 | 6.000 | 6× | 6.240 | 8.50 | 3 | 0.972 | 1.000 | 4.0 | n/a | NA |
