Series: P3N1F- & P3N2F- (Primo-Alu_F) - 3-Flute 90° SCEM
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- (Primo-Alu_F) for Finishing Aluminum
- Ø.125"-1.000"
- Cylindrical shank
- 3-Flute
- Coolant through for .250" DC or larger
- Variable Pitch
- Variable Helix
- 4x, 5x, 6x, 7xD APMX
- Corner Radius: .008" .015" .030" .060" .090" .125" R
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Shank Dia. |
CSP Coolant |

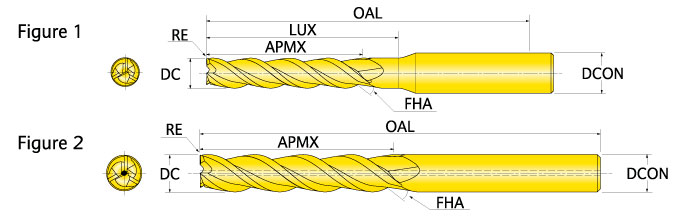

FIGURE Figure |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927150 | P3N1F-.125A050L069R008C | 0.1250 | 0.008 R | 0.500 | 0.697 | 4× | 2.50 | 3 | 0.250 | No | 1 | NA | |||
| 1927155 | P3N1F-.125A062L082R008C | 0.1250 | 0.008 R | 0.625 | 0.827 | 5× | 2.63 | 3 | 0.250 | No | 1 | NA | |||
| 1927156 | P3N1F-.125A075L094R008C | 0.1250 | 0.008 R | 0.750 | 0.945 | 6× | 2.75 | 3 | 0.250 | No | 1 | NA | |||
| 1927157 | P3N1F-.125A087L106R008C | 0.1250 | 0.008 R | 0.875 | 1.063 | 7× | 2.88 | 3 | 0.250 | No | 1 | NA | |||
| 1927158 | P3N1F-.156A062L084R008C | 0.1562 | 0.008 R | 0.625 | 0.846 | 4× | 2.63 | 3 | 0.250 | No | 1 | NA | |||
| 1927159 | P3N1F-.156A078L100R008C | 0.1562 | 0.008 R | 0.781 | 1.004 | 5× | 2.75 | 3 | 0.250 | No | 1 | NA | |||
| 1927160 | P3N1F-.156A093L116R008C | 0.1562 | 0.008 R | 0.938 | 1.161 | 6× | 2.88 | 3 | 0.250 | No | 1 | NA | |||
| 1927161 | P3N1F-.156A109L131R008C | 0.1562 | 0.008 R | 1.094 | 1.311 | 7× | 3.00 | 3 | 0.250 | No | 1 | NA | |||
| 1927162 | P3N1F-.187A075L102R008C | 0.1875 | 0.008 R | 0.750 | 1.024 | 4× | 2.75 | 3 | 0.250 | No | 1 | NA | |||
| 1927163 | P3N1F-.187A093L121R008C | 0.1875 | 0.008 R | 0.938 | 1.213 | 5× | 2.88 | 3 | 0.250 | No | 1 | NA | |||
| 1927164 | P3N1F-.187A112L140R008C | 0.1875 | 0.008 R | 1.125 | 1.402 | 6× | 3.13 | 3 | 0.250 | No | 1 | NA | |||
| 1927165 | P3N1F-.187A131L159R008C | 0.1875 | 0.008 R | 1.312 | 1.594 | 7× | 3.25 | 3 | 0.250 | No | 1 | NA | |||
| 1927151 | P3N2F-.250A100R008C | 0.2500 | 0.008 R | 1.000 | - | 4× | 2.75 | 3 | 0.250 | Yes | 2 | NA | |||
| 1927166 | P3N2F-.250A125R008C | 0.2500 | 0.008 R | 1.250 | - | 5× | 3.00 | 3 | 0.250 | Yes | 2 | NA | |||
| 1927167 | P3N2F-.250A150R008C | 0.2500 | 0.008 R | 1.500 | - | 6× | 3.25 | 3 | 0.250 | Yes | 2 | NA | |||
| 1927168 | P3N2F-.250A175R008C | 0.2500 | 0.008 R | 1.750 | - | 7× | 3.50 | 3 | 0.250 | Yes | 2 | NA | |||
| 1927169 | P3N2F-.312A125R008C | 0.3125 | 0.008 R | 1.250 | - | 4× | 3.25 | 3 | 0.313 | Yes | 2 | NA | |||
| 1927170 | P3N2F-.312A156R008C | 0.3125 | 0.008 R | 1.562 | - | 5× | 3.75 | 3 | 0.313 | Yes | 2 | NA | |||
| 1927171 | P3N2F-.312A187R008C | 0.3125 | 0.008 R | 1.875 | - | 6× | 4.00 | 3 | 0.313 | Yes | 2 | NA | |||
| 1927172 | P3N2F-.312A218R008C | 0.3125 | 0.008 R | 2.188 | - | 7× | 4.25 | 3 | 0.313 | Yes | 2 | n/a | n/a | NA | |
| 1927173 | P3N2F-.375A150R008C | 0.3750 | 0.008 R | 1.500 | - | 4× | 3.50 | 3 | 0.375 | Yes | 2 | NA | |||
| 1927174 | P3N2F-.375A187R008C | 0.3750 | 0.008 R | 1.875 | - | 5× | 4.00 | 3 | 0.375 | Yes | 2 | NA | |||
| 1927175 | P3N2F-.375A225R008C | 0.3750 | 0.008 R | 2.250 | - | 6× | 4.25 | 3 | 0.375 | Yes | 2 | NA | |||
| 1927176 | P3N2F-.375A262R008C | 0.3750 | 0.008 R | 2.625 | - | 7× | 4.75 | 3 | 0.375 | Yes | 2 | NA | |||
| 1927177 | P3N2F-.500A200R008C | 0.5000 | 0.008 R | 2.000 | - | 4× | 4.25 | 3 | 0.500 | Yes | 2 | NA | |||
| 1927178 | P3N2F-.500A250R008C | 0.5000 | 0.008 R | 2.500 | - | 5× | 4.75 | 3 | 0.500 | Yes | 2 | NA | |||
| 1927179 | P3N2F-.500A300R008C | 0.5000 | 0.008 R | 3.000 | - | 6× | 5.25 | 3 | 0.500 | Yes | 2 | NA | |||
| 1927180 | P3N2F-.500A350R008C | 0.5000 | 0.008 R | 3.500 | - | 7× | 5.75 | 3 | 0.500 | Yes | 2 | NA | |||
| 1927181 | P3N2F-.625A250R008C | 0.6250 | 0.008 R | 2.500 | - | 4× | 5.25 | 3 | 0.625 | Yes | 2 | NA | |||
| 1927182 | P3N2F-.625A312R008C | 0.6250 | 0.008 R | 3.125 | - | 5× | 6.00 | 3 | 0.625 | Yes | 2 | NA | |||
| 1927183 | P3N2F-.625A375R008C | 0.6250 | 0.008 R | 3.750 | - | 6× | 6.50 | 3 | 0.625 | Yes | 2 | NA | |||
| 1927184 | P3N2F-.625A437R008C | 0.6250 | 0.008 R | 4.375 | - | 7× | 7.25 | 3 | 0.625 | Yes | 2 | NA | |||
| 1927185 | P3N2F-.750A300R008C | 0.7500 | 0.008 R | 3.000 | - | 4× | 6.00 | 3 | 0.750 | Yes | 2 | NA | |||
| 1927186 | P3N2F-.750A375R008C | 0.7500 | 0.008 R | 3.750 | - | 5× | 6.75 | 3 | 0.750 | Yes | 2 | NA | |||
| 1927187 | P3N2F-.750A450R008C | 0.7500 | 0.008 R | 4.500 | - | 6× | 7.50 | 3 | 0.750 | Yes | 2 | NA | |||
| 1927188 | P3N2F-.750A525R008C | 0.7500 | 0.008 R | 5.250 | - | 7× | 8.25 | 3 | 0.750 | Yes | 2 | NA | |||
| 1927189 | P3N2F-1.00A400R008C | 1.0000 | 0.008 R | 4.000 | - | 4× | 7.25 | 3 | 1.000 | Yes | 2 | NA | |||
| 1927190 | P3N2F-1.00A500R008C | 1.0000 | 0.008 R | 5.000 | - | 5× | 8.25 | 3 | 1.000 | Yes | 2 | NA | |||
| 1927191 | P3N2F-1.00A600R008C | 1.0000 | 0.008 R | 6.000 | - | 6× | 9.25 | 3 | 1.000 | Yes | 2 | NA | |||
| 1927192 | P3N2F-1.00A700R008C | 1.0000 | 0.008 R | 7.000 | - | 7× | 10.25 | 3 | 1.000 | Yes | 2 | NA |
