Matrix MAXI

MAXI leads the Matrix range of automated tool dispensers, offering the widest selection of bin options and largest storage capacity. MAXI stands tall with a large capacity and surprisingly small footprint, and also features a sleek ergonomic design. Matrix MAXI is secure, with electronically-locked drawers and bins.

Suitable for a variety of cutting tools and related commodities:

• Cutters, drills, holders, and blades
• Inserts
• Solid Carbide Tooling
• Gauges
• Measuring Devices
• Small to medium sized grinding wheels
• Fixtures and accessories
• Small to medium sized industrial commodities

The modular system allows for the customization of drawers & bins:

• # of drawers per cabinet
• Height of drawers
• Drawer configuration and layout
• Size and quantity of bins in each drawer

No minimum number of drawers required:

• MAXI units can hold 1-12 drawers per cabinet, depending on drawer heights and number of auto-locks
• Drawer heights (exterior dimensions):

	Without Auto-Lock	With Auto-Lock
50MM	2.95" / 75mm	3.94" / 100mm
75MM	3.94” / 100mm	4.92” / 125mm
100MM	4.92” / 125mm	5.91” / 150mm
125MM	5.91” / 150mm	6.90” / 175mm

• Load weight per drawer:

• Up to 110lb (50kg) per drawer (*recommended weight limit)
• Jumbo 125MM drawer 190lb (90kg).

16 Bin Size Options Available

30 Standard Configuration Drawer options available with multiple bin configurations

Maximum 198 bins per drawer

Auto-Lock mechanism locks drawers & bins when returned (Optional feature per drawer!)

Cabinet weight (varies based on number of drawers & auto-locks):

• 4-drawer unit with 4 auto-locks: 880lb / ~400kg
• 12-drawer unit without auto-locks: 1325lb / ~600kg

Cabinet frame includes (4) adjustable legs with removable front panel for forklift access

Cabinet Dimensions:

• 47" W x 30" D x 58" H
• 1180mm W x 752mm D x 1469mm H

Available as:

• Touch

• Stand-alone unit complete with PC
• 17" touch screen monitor
• UPS (surge protection & power back-up)
• Barcode reader
• Network switch
• MANAGE - Matrix management software

• POD

• Add-on unit without monitor
• For connection to TOUCH unit
• An unlimited number of POD units can be connected to a single TOUCH unit; all cabinets are controlled with a single PC through the network

RFID, Fingerprint, and Magnetic card readers are available as optional accessories

Network - All versions can connect directly to the LAN. POD units can also connect to a TOUCH unit

Manual Override system in the case of power failure

Electrical Supply - 110AC +/-10% 4.6A or 220AC +/-10% 2.2A

Matrix MINI

MINI is the most compact solution in the Matrix range of automated tool dispensers, offering a wide selection of bin options. MINI can go just about anywhere, sitting atop a workbench or a Matrix DLS 4D. Matrix MINI is secure, with electronically locked drawers and bins.

Suitable for a variety of cutting tools:

• Cutters, drills, holders, and blades
• Inserts
• Solid Carbide Tooling
• Gauges

The modular system allows for the customization of drawers & bins:

• # of drawers per cabinet
• Height of drawers
• Drawer configuration and layout
• Size and quantity of bins in each drawer

No minimum number of drawers required:

• MINI units can hold 1-5 drawers per cabinet, depending on drawer heights and number of auto-locks
• Drawer heights (exterior dimensions):

	Without Auto-Lock	With Auto-Lock
50MM	2.95" / 75mm	3.94" / 100mm
75MM	3.94” / 100mm	4.92” / 125mm
100MM	4.92” / 125mm	5.91” / 150mm

• Load weight per drawer: Up to 44lb (20kg) per drawer (*recommended weight limit)

16 Bin Size Options Available

20 Standard Configuration Drawer options available with multiple bin configurations

Maximum 96 bins per drawer

Auto-Lock mechanism locks drawers & bins when returned (Optional feature per drawer!)

Cabinet weight (varies based on number of drawers & auto-locks):

• 4-drawer unit with 4 auto-locks: 365lb / 165kg

Cabinet Dimensions:

• 34" W x 23" D x 32" H
• 860mm W x 581mm D x 800mm H

Available as:

• Touch

• Stand-alone unit complete with PC
• 17" touch screen monitor
• UPS (surge protection & power back-up)
• Barcode reader
• Network switch
• MANAGE - Matrix management software

• POD

• Add-on unit without monitor
• For connection to TOUCH unit
• An unlimited number of POD units can be connected to a single TOUCH unit; all cabinets are controlled with a single PC through the network

RFID, Fingerprint, and Magnetic card readers are available as optional accessories

Network - All versions can connect directly to the LAN. POD units can also connect to a TOUCH unit

Manual Override system in the case of power failure

Electrical Supply - 110AC +/-10% 4.6A or 220AC +/-10% 2.2A

Matrix DLS 4D

DLS 4D is a supplemental storage solution that can be used as a base for a MINI cabinet. Matrix DLS 4D is semi-secure, with 4 electronically locked drawers.

Suitable for a large variety of cutting tools:

• Cutters, drills, holders, and blades
• Inserts
• Solid Carbide Tooling
• Long and large diameter tools, such as gun drills, slotting cutters, etc
• Gauges
• Measuring devices
• Small to medium sized grinding wheels
• Fixtures and accessories
• Small to medium sized industrial commodities

4 drawers per cabinet

External drawer heights:

• (1) 4" /101mm
• (2) 6" / 153mm
• (1) 8" / 203mm
• Internal height of each drawer is 1" / 25.4mm less than the external height

Load weight per drawer - Up to 397 lbs / 180kg

Partitions supplied with each drawer are pre-installed and bolted to the drawer base but can be changed

• Each 4” and 6” drawer comes with (5) 24” / 610mm pre-installed partitions
• Each 8” drawer comes with (3) 24” / 610mm pre-installed partitions

Dividers supplied with each drawer are not pre-installed and may be installed in any available slot

• Each 4” and 6” drawer comes with (8) 5” / 127mm dividers and (16) 6” /152mm dividers
• Each 8” drawer comes with (8) 8" / 203mm dividers

Cabinet Dimensions:

• 36" W x 24" D x 32" H
• 915mm W x 610mm D x 820mm H

Available as:

• POD

• Add-on unit without monitor
• For connection to TOUCH unit
• An unlimited number of POD units can be connected to a single TOUCH unit; all cabinets are controlled with a single PC through the network

Network - All versions can connect directly to the LAN. POD units can also connect to a TOUCH unit

Front Access Forklift Base - 2" / 100mm H

Manual override system in the case of power failure

Electrical supply - single power supply 110-230V

Matrix DLS-V 5D

DLS-V 5D is an electronically locked storage cabinet for managing tool assemblies.

• Controlled by MATRIX software with option to serialize each tool assembly
• Up to 3 racks per drawer
• Rack options:

• 6 holes rack for HSK A63 / C6 / 40T
• 8 holes rack for 30T

• Adjustable rack height
• Sits atop DLS 4D or work bench
• Available as POD version
• Cabinet dimensions 915mm/36” (W) x 610mm/24” (D) x 1070mm/42” (H) (including Base)

Matrix DLS 8D

DLS 8D is an economical solution with flexible drawer partitions suitable for small and large items that can be used as a stand alone or add on cabinet. Matrix DLS 8D is semi-secure, with 8 electronically locked drawers.

Suitable for a large variety of cutting tools:

• Cutters, drills, holders, and blades
• Inserts
• Solid Carbide Tooling
• Gauges
• Small to medium sized grinding wheels
• Fixtures and accessories
• Small to medium sized industrial commodities

8 drawers per cabinet

External drawer heights:

• (3) 4" /101mm
• (4) 5" / 127mm
• (1) 8" / 203mm
• Internal height of each drawer is 1" / 25.4mm less than the external height

Load weight per drawer - Up to 397 lbs / 180kg

Partitions supplied with each drawer are pre-installed and bolted to the drawer base but can be changed

• Each 4” and 5” drawer comes with (5) 24” / 610mm pre-installed partitions
• Each 8” drawer comes with (3) 24” / 610mm pre-installed partitions

Dividers supplied with each drawer are not pre-installed and may be installed in any available slot

• Each 4” and 5” drawer comes with (8) 5” / 127mm dividers and (16) 6” /152mm dividers
• Each 8” drawer comes with (8) 8" / 203mm dividers

Cabinet Dimensions:

• 36" W x 24" D x 48" H
• 915mm W x 610mm D x 1220mm H

Available as:

• Touch

• Stand-alone unit complete with PC
• 17" touch screen monitor
• UPS (surge protection & power back-up)
• Barcode reader
• Network switch
• MANAGE - Matrix management software

• POD

• Add-on unit without monitor
• For connection to TOUCH unit
• An unlimited number of POD units can be connected to a single TOUCH unit; all cabinets are controlled with a single PC through the network

RFID, fingerprint, and magnetic card readers are available as optional accessories

Network - All versions can connect directly to the LAN. POD units can also connect to a TOUCH unit

Front Access Forklift Base - 4" / 100mm H

Manual override system in the case of power failure

Electrical supply - single power supply 110-230V

Matrix ToolPort

Dispenses single inserts and small items. 100% accountability. Eight drawer and four drawer models.

• Large capacity / Small footprint → 800 inserts (4D bench-top model) or 1600 inserts (8D free standing model)
• Control unit houses pc, screen, single power supply 110-230V, barcode reader and touchpad
• Single or Double size reusable containers store each insert
• 10 cartridges per drawer
• 1 SKU per cartridge
• Each cartridge pre-loaded with 10 Single containers
• Containers per cartridge – maximum 20 Single or 10 Double
• Login to open cabinet - Click to issue item/s
• Each transaction records user, job number and a cost center
• Usage data is transmitted to MATRIX Manage via interface
• 8D model Dimensions: 676mm/27” (W) x 630mm/25” (D) x 1475mm/58” (H)
• 4D model Dimensions: 676mm/27” (W) x 630mm/25” (D) x 905mm/36” (H)
• Front Access Forklift Base - 4" / 100mm H
• CE Certified

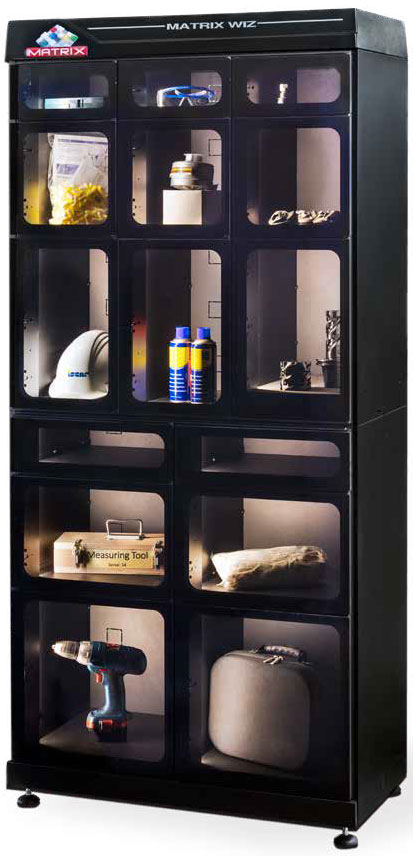

Matrix WIZ

Reconfigurable sleek modern design, transparent doors, and LED lighting.

• “DIY” installation
• WIZ cabinet consists of:

• Hood
• Top and bottom frames
• Base with forklift access

• 4-12 doors (lockers) per 2 column frame
• 6-18 doors (lockers) per 3 column frame
• Master cabinet houses 1 or 2 controllers – each controller can actuate 32 doors
• Up to 2 slave cabinets can be connected to a master cabinet
• Load weight per shelf – 15kg/33lbs
• Available as a POD (add-on) version
• Manual override in case of power failure
• Direct network connection
• Single power supply 12V 15A per cabinet
• Cabinet color - black (RAL9005)
• Cabinet dimensions – 2070mm/81.5” (H) x 914mm/36” (W) x 457mm/18” (D)
• 6 door options / locker dimensions:

	Door Code	H mm	W mm	D mm	H″	W″	D″
2 Col. Frame	2C-S	157	457	457	6	18	18
	2C-D	305	457	457	12	18	18
	2C-T	457	457	457	18	18	18
3 Col. Frame	3C-S	157	305	457	6	12	18
	3C-D	305	305	457	12	12	18
	3C-T	457	305	457	18	12	18

Matrix POUCH

Always the Right Tools for the Job

• MATRIX POUCH reads Balluff chip on tool adaptor
• Data string with tool assembly parts is transmitted to MATRIX
• Quick “error proof” access to approved tools
• Compatible with common adaptor types and sizes RFID
• Requires MATRIX software license v6.5 or higher

Matrix RTLS

100% Visibility Anywhere on the Shop Floor

• MATRIX Real Time Location System tracks production assets that move around on the shop floor
• Reduced time locating production assets
• Increased utilization of production assets
• Easy to implement
• IoT hardware includes:

• BLE (Bluetooth low energy) beacon - attached to each tracked asset - transmits a signal with a unique ID
• Gateway - installed at each location, like machine tool or tool crib - receives the beacon’s signal and transmits location data to MATRIX

• Track → Gauges; Measuring Devices; Test Equipment, Production Fixtures etc.
• Requires MATRIX software license v6.5 or higher

Android

Tool Crib Management from the Palm of Your Hand

• MATRIX app manages traditional warehouse and tool room
• Records transactions via Wi-Fi connection to networked MATRIX data base
• Compatible with any Android device, preferably with a built-in 1D/2D scanner
• Requires MATRIX software license v6.5 or higher

Matrix Manage

Comprehensive PC Application to manage your entire stock of cutting tools, gauges & MRO, in a MATRIX cabinet or regular warehouse.

Reports

• A complete suite of standard and customized reports in Excel, HTML, PDF & new Smartphone format
• Automatic delivery via email

KPIs

• Analyzer dashboard and item analytics provide overview of key performance indicators

Control

• Automatic calculation of re-order points Streamline purchasing

No Downtime

• Sophisticated planning engine
• Maximum availability – Minimum stock
• What you need – when you need it

Productivity

• CPU and Tool Life Calculator
• Benchmarking for continuous improvement

Transparency

• Full item & supplier maintenance: prices, stock, locations, technical data and usage history

Connectivity

• Interfaces with SAP and Machining Cloud
• Export/Import interface with ERP systems

User-Friendly

• Link photos and documents to items

Customized Data

• Build an Advanced report to “Mine” the data you need – then schedule a customized calculation for improved analytics
