Series: P6M2H-W - 6-Flute 90° SCEM Weldon

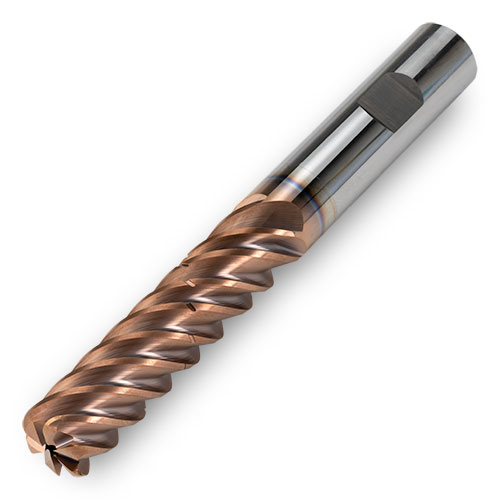

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_H for Trochoidal & H.E. Milling of Stainless Steel
- Ø.3125" -1.000"
- Coolant thru
- 6-Flute, Weldon flat shank
- Chip splitter cutting edge
- Variable Pitch
- Variable (Different) Helix, 45.5° Avg.
- 2x, 3x, 4xD APMX
- Corner Radius: .008" .015" .030" .060" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)

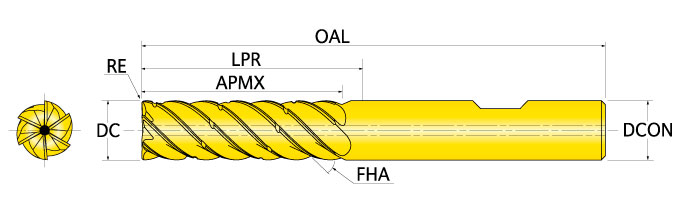

EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
ULDR Usable Length Dia. Ratio |
LPR Projection Length |
OAL Overall Length |
DCON Shank Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927580 | P6M2H-.312A062R008W | 0.3125 | 0.008 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927581 | P6M2H-.312A093R008W | 0.3125 | 0.008 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927582 | P6M2H-.312A125R008W | 0.3125 | 0.008 R | 1.250 | 4× | 1.870 | 3.25 | 0.313 | NA | |||
| 1927583 | P6M2H-.312A062R015W | 0.3125 | 0.015 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927584 | P6M2H-.312A093R015W | 0.3125 | 0.015 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927585 | P6M2H-.312A125R015W | 0.3125 | 0.015 R | 1.250 | 4× | 1.870 | 3.25 | 0.313 | NA | |||
| 1927586 | P6M2H-.312A062R030W | 0.3125 | 0.030 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927587 | P6M2H-.312A093R030W | 0.3125 | 0.030 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927588 | P6M2H-.312A125R030W | 0.3125 | 0.030 R | 1.250 | 4× | 1.870 | 3.25 | 0.313 | NA | |||
| 1927589 | P6M2H-.375A075R008W | 0.3750 | 0.008 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927590 | P6M2H-.375A112R008W | 0.3750 | 0.008 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927591 | P6M2H-.375A150R008W | 0.3750 | 0.008 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927592 | P6M2H-.375A075R015W | 0.3750 | 0.015 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927593 | P6M2H-.375A112R015W | 0.3750 | 0.015 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927594 | P6M2H-.375A150R015W | 0.3750 | 0.015 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927595 | P6M2H-.375A075R030W | 0.3750 | 0.030 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927596 | P6M2H-.375A112R030W | 0.3750 | 0.030 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927597 | P6M2H-.375A150R030W | 0.3750 | 0.030 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927598 | P6M2H-.500A100R008W | 0.5000 | 0.008 R | 1.000 | 2× | 1.480 | 3.25 | 0.500 | NA | |||
| 1927599 | P6M2H-.500A150R008W | 0.5000 | 0.008 R | 1.500 | 3× | 1.980 | 3.75 | 0.500 | NA | |||
| 1927600 | P6M2H-.500A200R008W | 0.5000 | 0.008 R | 2.000 | 4× | 2.480 | 4.25 | 0.500 | NA | |||
| 1927601 | P6M2H-.500A100R015W | 0.5000 | 0.015 R | 1.000 | 2× | 1.480 | 3.25 | 0.500 | NA | |||
| 1927602 | P6M2H-.500A150R015W | 0.5000 | 0.015 R | 1.500 | 3× | 1.980 | 3.75 | 0.500 | NA | |||
| 1927603 | P6M2H-.500A200R015W | 0.5000 | 0.015 R | 2.000 | 4× | 2.480 | 4.25 | 0.500 | NA | |||
| 1927604 | P6M2H-.500A100R030W | 0.5000 | 0.030 R | 1.000 | 2× | 1.480 | 3.25 | 0.500 | NA | |||
| 1927605 | P6M2H-.500A150R030W | 0.5000 | 0.030 R | 1.500 | 3× | 1.980 | 3.75 | 0.500 | NA | |||
| 1927606 | P6M2H-.500A200R030W | 0.5000 | 0.030 R | 2.000 | 4× | 2.480 | 4.25 | 0.500 | NA | |||
| 1929855 | P6M2H-.500A100R060W | 0.5000 | 0.060 R | 1.000 | 2× | 1.480 | 3.25 | 0.500 | n/a | n/a | NA | |
| 1929856 | P6M2H-.500A150R060W | 0.5000 | 0.060 R | 1.500 | 3× | 1.980 | 3.75 | 0.500 | n/a | n/a | NA | |
| 1929857 | P6M2H-.500A200R060W | 0.5000 | 0.060 R | 2.000 | 4× | 2.480 | 4.25 | 0.500 | n/a | n/a | NA | |
| 1927607 | P6M2H-.625A125R015W | 0.6250 | 0.015 R | 1.250 | 2× | 1.860 | 3.75 | 0.625 | NA | |||
| 1927608 | P6M2H-.625A187R015W | 0.6250 | 0.015 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927609 | P6M2H-.625A250R015W | 0.6250 | 0.015 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927610 | P6M2H-.625A125R030W | 0.6250 | 0.030 R | 1.250 | 2× | 1.860 | 3.75 | 0.625 | NA | |||
| 1927611 | P6M2H-.625A187R030W | 0.6250 | 0.030 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927612 | P6M2H-.625A250R030W | 0.6250 | 0.030 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927613 | P6M2H-.625A125R060W | 0.6250 | 0.060 R | 1.250 | 2× | 1.860 | 3.75 | 0.625 | NA | |||
| 1927614 | P6M2H-.625A187R060W | 0.6250 | 0.060 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927615 | P6M2H-.625A250R060W | 0.6250 | 0.060 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927616 | P6M2H-.625A125R125W | 0.6250 | 0.125 R | 1.250 | 2× | 1.860 | 3.75 | 0.625 | NA | |||
| 1927617 | P6M2H-.625A187R125W | 0.6250 | 0.125 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927618 | P6M2H-.625A250R125W | 0.6250 | 0.125 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927619 | P6M2H-.750A150R015W | 0.7500 | 0.015 R | 1.500 | 2× | 2.240 | 4.25 | 0.750 | NA | |||
| 1927620 | P6M2H-.750A225R015W | 0.7500 | 0.015 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927621 | P6M2H-.750A300R015W | 0.7500 | 0.015 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927622 | P6M2H-.750A150R030W | 0.7500 | 0.030 R | 1.500 | 2× | 2.240 | 4.25 | 0.750 | NA | |||
| 1927623 | P6M2H-.750A225R030W | 0.7500 | 0.030 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927624 | P6M2H-.750A300R030W | 0.7500 | 0.030 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927625 | P6M2H-.750A150R060W | 0.7500 | 0.060 R | 1.500 | 2× | 2.240 | 4.25 | 0.750 | NA | |||
| 1927626 | P6M2H-.750A225R060W | 0.7500 | 0.060 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927627 | P6M2H-.750A300R060W | 0.7500 | 0.060 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927628 | P6M2H-.750A150R125W | 0.7500 | 0.125 R | 1.500 | 2× | 2.240 | 4.25 | 0.750 | NA | |||
| 1927629 | P6M2H-.750A225R125W | 0.7500 | 0.125 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927630 | P6M2H-.750A300R125W | 0.7500 | 0.125 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA |
