New 5- and 6-Flute 90° End Mills for High Efficiency Machining in Stainless Steel
Features and Benefits

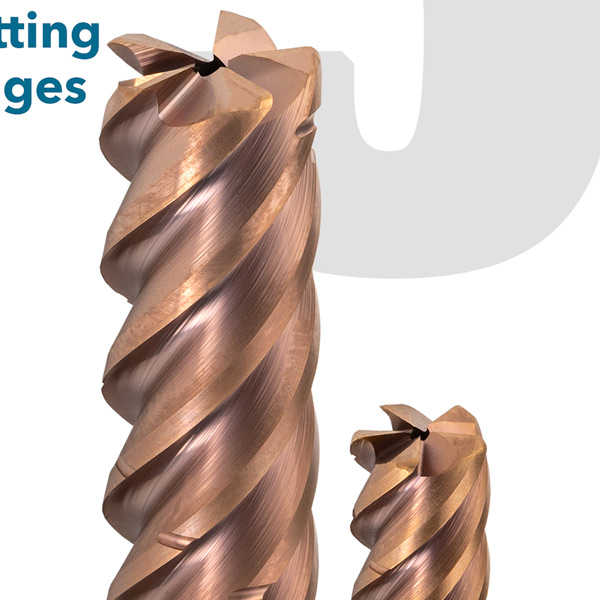

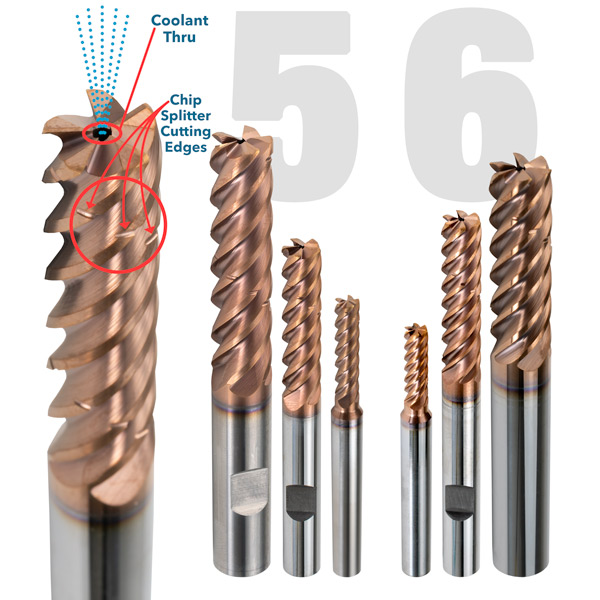

- Chip splitter cutting edge provides unique chip management, disrupts vibrations, and reduces heat
- Unique geometry with variable pitch and variable helix disrupts vibrations in long reach applications
- 2x, 3x, and up to 4xD depth-of-cut (APMX) maximum provides a deep reach capability
- Coolant thru to assist with chip control and evacuation, and reduce heat
- Wide variety of corner radii: .004", .008", .015", .030", .060", .125"
Product Ranges & Details
Cutter Series
P5M1H, P6M1H - Cylindrical shank
P5M2H-_C, P6M2H-_C - Cylindrical shank with coolant thru
P5M2H-_W, P6M2H-_W - Weldon flat shank with coolant thru
Geometry
5- and 6-flute, coolant thru (Ø .3125" and larger), variable pitch, variable helix
Diameter Range
.125–1.000"
Depth of Cut
2x, 3x, and 4xD APMX
Grade
IN2205 (multi-layer PVD AlTiSiN)
Lead Angle
90°
Corner Radius
.004", .008", .015", .030", .060", .125"
Materials:
Stainless Steel
