Series: P5M2H-W - 5-Flute 90° SCEM Weldon
Representative image shown ⓘ

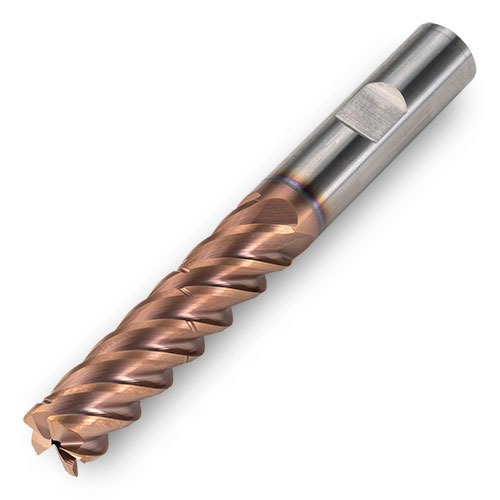

The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_H for Trochoidal & H.E. Milling of Stainless Steel
- Ø.3125" - 1.000"
- Coolant thru
- 5-Flute, Weldon flat shank
- Chip splitter cutting edge
- Variable Pitch
- Variable (Different) Helix, 45.5° Avg.
- 2x, 3x, 4xD APMX
- Corner Radius: .008" .015" .030" .060" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
EDP |
Part Number |

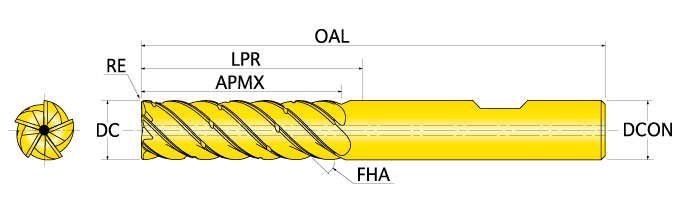

DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
ULDR Usable Length Dia. Ratio |
LPR Projection Length |
OAL Overall Length |
DCON Shank Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927448 | P5M2H-.312A062R008W | 0.3125 | 0.008 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927449 | P5M2H-.312A093R008W | 0.3125 | 0.008 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927450 | P5M2H-.312A125R008W | 0.3125 | 0.008 R | 1.250 | 4× | 1.620 | 3.00 | 0.313 | NA | |||
| 1927451 | P5M2H-.312A062R015W | 0.3125 | 0.015 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927452 | P5M2H-.312A093R015W | 0.3125 | 0.015 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927453 | P5M2H-.312A125R015W | 0.3125 | 0.015 R | 1.250 | 4× | 1.620 | 3.00 | 0.313 | NA | |||
| 1927454 | P5M2H-.312A062R030W | 0.3125 | 0.030 R | 0.625 | 2× | 1.120 | 2.50 | 0.313 | NA | |||
| 1927455 | P5M2H-.312A093R030W | 0.3125 | 0.030 R | 0.938 | 3× | 1.370 | 2.75 | 0.313 | NA | |||
| 1927456 | P5M2H-.312A125R030W | 0.3125 | 0.030 R | 1.250 | 4× | 1.620 | 3.00 | 0.313 | NA | |||
| 1927457 | P5M2H-.375A075R008W | 0.3750 | 0.008 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927458 | P5M2H-.375A112R008W | 0.3750 | 0.008 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927459 | P5M2H-.375A150R008W | 0.3750 | 0.008 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927460 | P5M2H-.375A075R015W | 0.3750 | 0.015 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927461 | P5M2H-.375A112R015W | 0.3750 | 0.015 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927462 | P5M2H-.375A150R015W | 0.3750 | 0.015 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927463 | P5M2H-.375A075R030W | 0.3750 | 0.030 R | 0.750 | 2× | 1.220 | 2.75 | 0.375 | NA | |||
| 1927464 | P5M2H-.375A112R030W | 0.3750 | 0.030 R | 1.125 | 3× | 1.720 | 3.25 | 0.375 | NA | |||
| 1927465 | P5M2H-.375A150R030W | 0.3750 | 0.030 R | 1.500 | 4× | 1.970 | 3.50 | 0.375 | NA | |||
| 1927466 | P5M2H-.500A100R008W | 0.5000 | 0.008 R | 1.000 | 2× | 1.230 | 3.00 | 0.500 | NA | |||
| 1927467 | P5M2H-.500A150R008W | 0.5000 | 0.008 R | 1.500 | 3× | 1.730 | 3.50 | 0.500 | NA | |||
| 1927468 | P5M2H-.500A200R008W | 0.5000 | 0.008 R | 2.000 | 4× | 2.230 | 4.00 | 0.500 | NA | |||
| 1927469 | P5M2H-.500A100R015W | 0.5000 | 0.015 R | 1.000 | 2× | 1.230 | 3.00 | 0.500 | NA | |||
| 1927470 | P5M2H-.500A150R015W | 0.5000 | 0.015 R | 1.500 | 3× | 1.730 | 3.50 | 0.500 | NA | |||
| 1927471 | P5M2H-.500A200R015W | 0.5000 | 0.015 R | 2.000 | 4× | 2.230 | 4.00 | 0.500 | NA | |||
| 1927472 | P5M2H-.500A100R030W | 0.5000 | 0.030 R | 1.000 | 2× | 1.230 | 3.00 | 0.500 | NA | |||
| 1927473 | P5M2H-.500A150R030W | 0.5000 | 0.030 R | 1.500 | 3× | 1.730 | 3.50 | 0.500 | NA | |||
| 1927474 | P5M2H-.500A200R030W | 0.5000 | 0.030 R | 2.000 | 4× | 2.230 | 4.00 | 0.500 | NA | |||
| 1929849 | P5M2H-.500A100R060W | 0.5000 | 0.060 R | 1.000 | 2× | 1.230 | 3.00 | 0.500 | n/a | n/a | NA | |
| 1929850 | P5M2H-.500A150R060W | 0.5000 | 0.060 R | 1.500 | 3× | 1.730 | 3.50 | 0.500 | n/a | n/a | NA | |
| 1929851 | P5M2H-.500A200R060W | 0.5000 | 0.060 R | 2.000 | 4× | 2.230 | 4.00 | 0.500 | n/a | n/a | NA | |
| 1927475 | P5M2H-.625A125R015W | 0.6250 | 0.015 R | 1.250 | 2× | 1.610 | 3.50 | 0.625 | NA | |||
| 1927476 | P5M2H-.625A187R015W | 0.6250 | 0.015 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927477 | P5M2H-.625A250R015W | 0.6250 | 0.015 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927478 | P5M2H-.625A125R030W | 0.6250 | 0.030 R | 1.250 | 2× | 1.610 | 3.50 | 0.625 | NA | |||
| 1927479 | P5M2H-.625A187R030W | 0.6250 | 0.030 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927480 | P5M2H-.625A250R030W | 0.6250 | 0.030 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927481 | P5M2H-.625A125R060W | 0.6250 | 0.060 R | 1.250 | 2× | 1.610 | 3.50 | 0.625 | NA | |||
| 1927482 | P5M2H-.625A187R060W | 0.6250 | 0.060 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927483 | P5M2H-.625A250R060W | 0.6250 | 0.060 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927484 | P5M2H-.625A125R125W | 0.6250 | 0.125 R | 1.250 | 2× | 1.610 | 3.50 | 0.625 | NA | |||
| 1927485 | P5M2H-.625A187R125W | 0.6250 | 0.125 R | 1.875 | 3× | 2.360 | 4.25 | 0.625 | NA | |||
| 1927486 | P5M2H-.625A250R125W | 0.6250 | 0.125 R | 2.500 | 4× | 3.110 | 5.00 | 0.625 | NA | |||
| 1927487 | P5M2H-.750A150R015W | 0.7500 | 0.015 R | 1.500 | 2× | 1.990 | 4.00 | 0.750 | NA | |||
| 1927488 | P5M2H-.750A225R015W | 0.7500 | 0.015 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927489 | P5M2H-.750A300R015W | 0.7500 | 0.015 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927490 | P5M2H-.750A150R030W | 0.7500 | 0.030 R | 1.500 | 2× | 1.990 | 4.00 | 0.750 | NA | |||
| 1927491 | P5M2H-.750A225R030W | 0.7500 | 0.030 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927492 | P5M2H-.750A300R030W | 0.7500 | 0.030 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927493 | P5M2H-.750A150R060W | 0.7500 | 0.060 R | 1.500 | 2× | 1.990 | 4.00 | 0.750 | NA | |||
| 1927494 | P5M2H-.750A225R060W | 0.7500 | 0.060 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927495 | P5M2H-.750A300R060W | 0.7500 | 0.060 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927496 | P5M2H-.750A150R125W | 0.7500 | 0.125 R | 1.500 | 2× | 1.990 | 4.00 | 0.750 | NA | |||
| 1927497 | P5M2H-.750A225R125W | 0.7500 | 0.125 R | 2.250 | 3× | 2.990 | 5.00 | 0.750 | NA | |||
| 1927498 | P5M2H-.750A300R125W | 0.7500 | 0.125 R | 3.000 | 4× | 3.740 | 5.75 | 0.750 | NA | |||
| 1927499 | P5M2H-1.00A200R015W | 1.0000 | 0.015 R | 2.000 | 2× | 2.240 | 4.50 | 1.000 | NA | |||
| 1927500 | P5M2H-1.00A300R015W | 1.0000 | 0.015 R | 3.000 | 3× | 3.240 | 5.50 | 1.000 | NA | |||
| 1927501 | P5M2H-1.00A400R015W | 1.0000 | 0.015 R | 4.000 | 4× | 4.240 | 6.50 | 1.000 | NA | |||
| 1927502 | P5M2H-1.00A200R030W | 1.0000 | 0.030 R | 2.000 | 2× | 2.240 | 4.50 | 1.000 | NA | |||
| 1927503 | P5M2H-1.00A300R030W | 1.0000 | 0.030 R | 3.000 | 3× | 3.240 | 5.50 | 1.000 | NA | |||
| 1927504 | P5M2H-1.00A400R030W | 1.0000 | 0.030 R | 4.000 | 4× | 4.240 | 6.50 | 1.000 | NA | |||
| 1927505 | P5M2H-1.00A200R060W | 1.0000 | 0.060 R | 2.000 | 2× | 2.240 | 4.50 | 1.000 | NA | |||
| 1927506 | P5M2H-1.00A300R060W | 1.0000 | 0.060 R | 3.000 | 3× | 3.240 | 5.50 | 1.000 | NA | |||
| 1927507 | P5M2H-1.00A400R060W | 1.0000 | 0.060 R | 4.000 | 4× | 4.240 | 6.50 | 1.000 | NA | |||
| 1927508 | P5M2H-1.00A200R125W | 1.0000 | 0.125 R | 2.000 | 2× | 2.240 | 4.50 | 1.000 | NA | |||
| 1927509 | P5M2H-1.00A300R125W | 1.0000 | 0.125 R | 3.000 | 3× | 3.240 | 5.50 | 1.000 | NA | |||
| 1927510 | P5M2H-1.00A400R125W | 1.0000 | 0.125 R | 4.000 | 4× | 4.240 | 6.50 | 1.000 | NA |
