Series: P6M1H & P6M2H - 6-Flute 90° SCEM

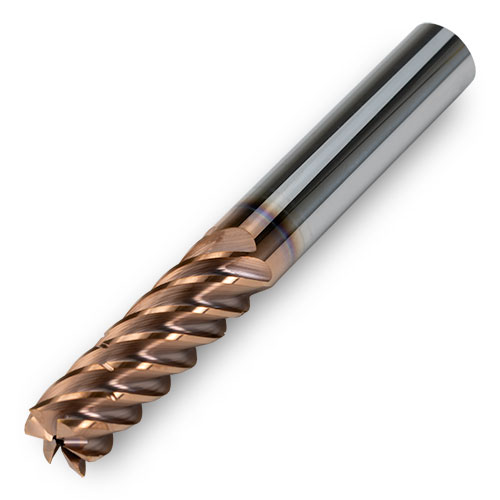

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_H for Trochoidal & H.E. Milling of Stainless Steel
- Ø.125" - .750"
- Coolant thru for .3125" DC or larger
- 6-Flute, Cylindrical shank
- Chip splitter cutting edge
- Variable Pitch
- Variable (Different) Helix, 45.5° Avg.
- 2x, 3x, 4xD APMX
- Corner Radius: .004" .008" .015" .030" .060" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
DCON Shank Dia. |
CSP Coolant |

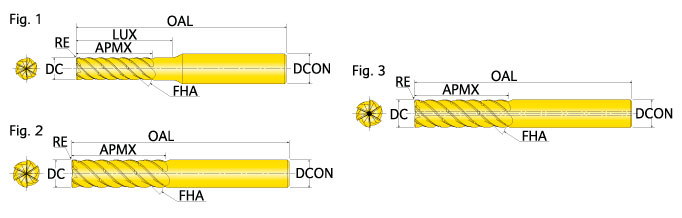

FIGURE Figure |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1927511 | P6M1H-.125A025L037R004C | 0.1250 | 0.004 R | 0.250 | 0.375 | 2× | 2.00 | 0.250 | No | 1 | NA | |||
| 1927512 | P6M1H-.125A037L050R004C | 0.1250 | 0.004 R | 0.375 | 0.500 | 3× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927513 | P6M1H-.125A050L062R004C | 0.1250 | 0.004 R | 0.500 | 0.625 | 4× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927514 | P6M1H-.125A025L037R008C | 0.1250 | 0.008 R | 0.250 | 0.375 | 2× | 2.00 | 0.250 | No | 1 | NA | |||
| 1927515 | P6M1H-.125A037L050R008C | 0.1250 | 0.008 R | 0.375 | 0.500 | 3× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927516 | P6M1H-.125A050L062R008C | 0.1250 | 0.008 R | 0.500 | 0.625 | 4× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927517 | P6M1H-.187A037L050R004C | 0.1875 | 0.004 R | 0.375 | 0.500 | 2× | 2.00 | 0.250 | No | 1 | NA | |||
| 1927518 | P6M1H-.187A056L068R004C | 0.1875 | 0.004 R | 0.562 | 0.688 | 3× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927519 | P6M1H-.187A075L087R004C | 0.1875 | 0.004 R | 0.750 | 0.875 | 4× | 2.50 | 0.250 | No | 1 | NA | |||
| 1927520 | P6M1H-.187A037L050R008C | 0.1875 | 0.008 R | 0.375 | 0.500 | 2× | 2.00 | 0.250 | No | 1 | NA | |||
| 1927521 | P6M1H-.187A056L068R008C | 0.1875 | 0.008 R | 0.562 | 0.688 | 3× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927522 | P6M1H-.187A075L087R008C | 0.1875 | 0.008 R | 0.750 | 0.875 | 4× | 2.25 | 0.250 | No | 1 | NA | |||
| 1927523 | P6M1H-.250A050R004C | 0.2500 | 0.004 R | 0.500 | - | 2× | 2.00 | 0.250 | No | 2 | NA | |||
| 1927524 | P6M1H-.250A075R004C | 0.2500 | 0.004 R | 0.750 | - | 3× | 2.25 | 0.250 | No | 2 | NA | |||
| 1927525 | P6M1H-.250A100R004C | 0.2500 | 0.004 R | 1.000 | - | 4× | 2.50 | 0.250 | No | 2 | NA | |||
| 1927526 | P6M1H-.250A050R008C | 0.2500 | 0.008 R | 0.500 | - | 2× | 2.00 | 0.250 | No | 2 | NA | |||
| 1927527 | P6M1H-.250A075R008C | 0.2500 | 0.008 R | 0.750 | - | 3× | 2.25 | 0.250 | No | 2 | NA | |||
| 1927528 | P6M1H-.250A100R008C | 0.2500 | 0.008 R | 1.000 | - | 4× | 2.50 | 0.250 | No | 2 | NA | |||
| 1928834 | P6M1H-.250A050R015C | 0.2500 | 0.015 R | 0.500 | - | 2× | 2.00 | 0.250 | No | 2 | NA | |||
| 1928836 | P6M1H-.250A075R015C | 0.2500 | 0.015 R | 0.750 | - | 3× | 2.25 | 0.250 | No | 2 | NA | |||
| 1928842 | P6M1H-.250A100R015C | 0.2500 | 0.015 R | 1.000 | - | 4× | 2.50 | 0.250 | No | 2 | NA | |||
| 1928843 | P6M1H-.250A050R030C | 0.2500 | 0.030 R | 0.500 | - | 2× | 2.00 | 0.250 | No | 2 | NA | |||
| 1928844 | P6M1H-.250A075R030C | 0.2500 | 0.030 R | 0.750 | - | 3× | 2.25 | 0.250 | No | 2 | NA | |||
| 1928845 | P6M1H-.250A100R030C | 0.2500 | 0.030 R | 1.000 | - | 4× | 2.50 | 0.250 | No | 2 | NA | |||
| 1927529 | P6M2H-.312A062R008C | 0.3125 | 0.008 R | 0.625 | - | 2× | 2.50 | 0.313 | Yes | 3 | NA | |||
| 1927530 | P6M2H-.312A093R008C | 0.3125 | 0.008 R | 0.938 | - | 3× | 2.75 | 0.313 | Yes | 3 | NA | |||
| 1927531 | P6M2H-.312A125R008C | 0.3125 | 0.008 R | 1.250 | - | 4× | 3.25 | 0.313 | Yes | 3 | NA | |||
| 1927532 | P6M2H-.312A062R015C | 0.3125 | 0.015 R | 0.625 | - | 2× | 2.50 | 0.313 | Yes | 3 | NA | |||
| 1927533 | P6M2H-.312A093R015C | 0.3125 | 0.015 R | 0.938 | - | 3× | 2.75 | 0.313 | Yes | 3 | NA | |||
| 1927534 | P6M2H-.312A125R015C | 0.3125 | 0.015 R | 1.250 | - | 4× | 3.25 | 0.313 | Yes | 3 | NA | |||
| 1927535 | P6M2H-.312A062R030C | 0.3125 | 0.030 R | 0.625 | - | 2× | 2.50 | 0.313 | Yes | 3 | NA | |||
| 1927536 | P6M2H-.312A093R030C | 0.3125 | 0.030 R | 0.938 | - | 3× | 2.75 | 0.313 | Yes | 3 | NA | |||
| 1927537 | P6M2H-.312A125R030C | 0.3125 | 0.030 R | 1.250 | - | 4× | 3.25 | 0.313 | Yes | 3 | NA | |||
| 1927538 | P6M2H-.375A075R008C | 0.3750 | 0.008 R | 0.750 | - | 2× | 2.75 | 0.375 | Yes | 3 | NA | |||
| 1927539 | P6M2H-.375A112R008C | 0.3750 | 0.008 R | 1.125 | - | 3× | 3.25 | 0.375 | Yes | 3 | NA | |||
| 1927540 | P6M2H-.375A150R008C | 0.3750 | 0.008 R | 1.500 | - | 4× | 3.50 | 0.375 | Yes | 3 | NA | |||
| 1927541 | P6M2H-.375A075R015C | 0.3750 | 0.015 R | 0.750 | - | 2× | 2.75 | 0.375 | Yes | 3 | NA | |||
| 1927542 | P6M2H-.375A112R015C | 0.3750 | 0.015 R | 1.125 | - | 3× | 3.25 | 0.375 | Yes | 3 | NA | |||
| 1927543 | P6M2H-.375A150R015C | 0.3750 | 0.015 R | 1.500 | - | 4× | 3.50 | 0.375 | Yes | 3 | NA | |||
| 1927544 | P6M2H-.375A075R030C | 0.3750 | 0.030 R | 0.750 | - | 2× | 2.75 | 0.375 | Yes | 3 | NA | |||
| 1927545 | P6M2H-.375A112R030C | 0.3750 | 0.030 R | 1.125 | - | 3× | 3.25 | 0.375 | Yes | 3 | NA | |||
| 1927546 | P6M2H-.375A150R030C | 0.3750 | 0.030 R | 1.500 | - | 4× | 3.50 | 0.375 | Yes | 3 | NA | |||
| 1927547 | P6M2H-.500A100R008C | 0.5000 | 0.008 R | 1.000 | - | 2× | 3.25 | 0.500 | Yes | 3 | NA | |||
| 1927548 | P6M2H-.500A150R008C | 0.5000 | 0.008 R | 1.500 | - | 3× | 3.75 | 0.500 | Yes | 3 | NA | |||
| 1927549 | P6M2H-.500A200R008C | 0.5000 | 0.008 R | 2.000 | - | 4× | 4.25 | 0.500 | Yes | 3 | NA | |||
| 1927550 | P6M2H-.500A100R015C | 0.5000 | 0.015 R | 1.000 | - | 2× | 3.25 | 0.500 | Yes | 3 | NA | |||
| 1927551 | P6M2H-.500A150R015C | 0.5000 | 0.015 R | 1.500 | - | 3× | 3.75 | 0.500 | Yes | 3 | NA | |||
| 1927552 | P6M2H-.500A200R015C | 0.5000 | 0.015 R | 2.000 | - | 4× | 4.25 | 0.500 | Yes | 3 | NA | |||
| 1927553 | P6M2H-.500A100R030C | 0.5000 | 0.030 R | 1.000 | - | 2× | 3.25 | 0.500 | Yes | 3 | NA | |||
| 1927554 | P6M2H-.500A150R030C | 0.5000 | 0.030 R | 1.500 | - | 3× | 3.75 | 0.500 | Yes | 3 | NA | |||
| 1927555 | P6M2H-.500A200R030C | 0.5000 | 0.030 R | 2.000 | - | 4× | 4.25 | 0.500 | Yes | 3 | NA | |||
| 1929852 | P6M2H-.500A100R060C | 0.5000 | 0.060 R | 1.000 | - | 2× | 3.25 | 0.500 | Yes | 3 | n/a | n/a | NA | |
| 1929853 | P6M2H-.500A150R060C | 0.5000 | 0.060 R | 1.500 | - | 3× | 3.75 | 0.500 | Yes | 3 | n/a | n/a | NA | |
| 1929854 | P6M2H-.500A200R060C | 0.5000 | 0.060 R | 2.000 | - | 4× | 4.25 | 0.500 | Yes | 3 | n/a | n/a | NA | |
| 1927556 | P6M2H-.625A125R015C | 0.6250 | 0.015 R | 1.250 | - | 2× | 3.75 | 0.625 | Yes | 3 | NA | |||
| 1927557 | P6M2H-.625A187R015C | 0.6250 | 0.015 R | 1.875 | - | 3× | 4.25 | 0.625 | Yes | 3 | NA | |||
| 1927558 | P6M2H-.625A250R015C | 0.6250 | 0.015 R | 2.500 | - | 4× | 5.00 | 0.625 | Yes | 3 | NA | |||
| 1927559 | P6M2H-.625A125R030C | 0.6250 | 0.030 R | 1.250 | - | 2× | 3.75 | 0.625 | Yes | 3 | NA | |||
| 1927560 | P6M2H-.625A187R030C | 0.6250 | 0.030 R | 1.875 | - | 3× | 4.25 | 0.625 | Yes | 3 | NA | |||
| 1927561 | P6M2H-.625A250R030C | 0.6250 | 0.030 R | 2.500 | - | 4× | 5.00 | 0.625 | Yes | 3 | NA | |||
| 1927562 | P6M2H-.625A125R060C | 0.6250 | 0.060 R | 1.250 | - | 2× | 3.75 | 0.625 | Yes | 3 | NA | |||
| 1927563 | P6M2H-.625A187R060C | 0.6250 | 0.060 R | 1.875 | - | 3× | 4.25 | 0.625 | Yes | 3 | NA | |||
| 1927564 | P6M2H-.625A250R060C | 0.6250 | 0.060 R | 2.500 | - | 4× | 5.00 | 0.625 | Yes | 3 | NA | |||
| 1927565 | P6M2H-.625A125R125C | 0.6250 | 0.125 R | 1.250 | - | 2× | 3.75 | 0.625 | Yes | 3 | NA | |||
| 1927566 | P6M2H-.625A187R125C | 0.6250 | 0.125 R | 1.875 | - | 3× | 4.25 | 0.625 | Yes | 3 | NA | |||
| 1927567 | P6M2H-.625A250R125C | 0.6250 | 0.125 R | 2.500 | - | 4× | 5.00 | 0.625 | Yes | 3 | NA | |||
| 1927568 | P6M2H-.750A150R015C | 0.7500 | 0.015 R | 1.500 | - | 2× | 4.25 | 0.750 | Yes | 3 | NA | |||
| 1927569 | P6M2H-.750A225R015C | 0.7500 | 0.015 R | 2.250 | - | 3× | 5.00 | 0.750 | Yes | 3 | NA | |||
| 1927570 | P6M2H-.750A300R015C | 0.7500 | 0.015 R | 3.000 | - | 4× | 5.75 | 0.750 | Yes | 3 | NA | |||
| 1927571 | P6M2H-.750A150R030C | 0.7500 | 0.030 R | 1.500 | - | 2× | 4.25 | 0.750 | Yes | 3 | NA | |||
| 1927572 | P6M2H-.750A225R030C | 0.7500 | 0.030 R | 2.250 | - | 3× | 5.00 | 0.750 | Yes | 3 | NA | |||
| 1927573 | P6M2H-.750A300R030C | 0.7500 | 0.030 R | 3.000 | - | 4× | 5.75 | 0.750 | Yes | 3 | NA | |||
| 1927574 | P6M2H-.750A150R060C | 0.7500 | 0.060 R | 1.500 | - | 2× | 4.25 | 0.750 | Yes | 3 | NA | |||
| 1927575 | P6M2H-.750A225R060C | 0.7500 | 0.060 R | 2.250 | - | 3× | 5.00 | 0.750 | Yes | 3 | NA | |||
| 1927576 | P6M2H-.750A300R060C | 0.7500 | 0.060 R | 3.000 | - | 4× | 5.75 | 0.750 | Yes | 3 | NA | |||
| 1927577 | P6M2H-.750A150R125C | 0.7500 | 0.125 R | 1.500 | - | 2× | 4.25 | 0.750 | Yes | 3 | NA | |||
| 1927578 | P6M2H-.750A225R125C | 0.7500 | 0.125 R | 2.250 | - | 3× | 5.00 | 0.750 | Yes | 3 | NA | |||
| 1927579 | P6M2H-.750A300R125C | 0.7500 | 0.125 R | 3.000 | - | 4× | 5.75 | 0.750 | Yes | 3 | NA |
