Home > HiPos-Plus > AOMT17 - Multi-Purpose Insert > AOMT170504R

EDP:
Part: AOMT170504R

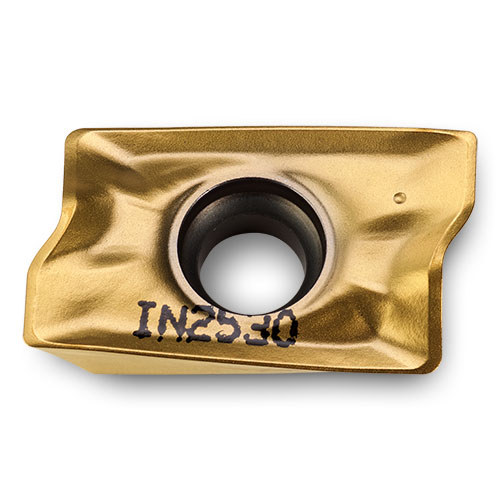

Series: AOMT17 - Multi-Purpose Insert

Application

Multi-Purpose

RE Corner Radius

0.015

BS Wiper Length

0.100

LE Cutting Edge Eff. Length

0.633

INSL Insert Length

0.728

W1 Insert Width

0.421

S Thickness

0.218

NOI Number of Indexes

2

IH Insert Hand

Right

Product Series Features:

Pressed rake face geometry promotes efficient chip formation
Integrated wiper flat on face for producing surface finishes as good as 32 Ra
Diverse corner configurations
Designed for multiple materials and applications
2 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.015
BS - Wiper Length	0.100
LE - Cutting Edge Eff. Length	0.633
INSL - Insert Length	0.728
W1 - Insert Width	0.421
S - Thickness	0.218
NOI - Number of Indexes	2
IH - Insert Hand	Right

Choose a Section

Edp	Part Number	Part Number2	Grade
5873144	AOMT170504R IN1030	AOMT170504R IN1030	IN1030
5874361	AOMT170504R IN2540	AOMT170504R IN2540	IN2540
5874485	AOMT170504R IN2530	AOMT170504R IN2530	IN2530
5616114	AOMT170504R IN2505	AOMT170504R IN2505	IN2505

HiPos-Plus
12J1G - 90° End Mill

Ø1.000-1.500"
TopOn Connection
17 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .093", .125", .156", .187", .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

HiPos-Plus
12J1G - 90° End Mill

Ø25-40 mm
Weldon Shank (Metric)
17 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, & 6.4 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
16 mm Depth of cut

HiPos-Plus
12J1G - 90° End Mill

Ø25-40 mm
InnoFit Adaption
17 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, & 6.4 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
16 mm Depth of cut

HiPos-Plus
12J1G - 90° End Mill (V-Flange)

Ø1.000-1.500"
V-Flange Connection
17 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .093", .125", .187", .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

HiPos-Plus
12J1G - 90° End Mill (Weldon)

Ø.750-2.000"
Weldon Shank
17 mm Insert with 2 indexes
Optional Coolant
Insert corners: .015" .031" .062" .093" .125" .156" .187" & .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

HiPos-Plus
12L1G - 75° Roughing End Mill

Ø2.00"
Cylindrical Shank
17 mm Insert with 2 indexes
Insert Corner: .03" R
Uses opposing unused edges of AOMT17 insert, offering the value to obtain 4 indexes.
Ideal for squaring up blocks and general facing.
.15" Depth of cut

HiPos-Plus
12N1G - Chamfer End Mill

Ø1.25" Min.
Weldon Shank
17 mm Insert with 2 indexes
45° Cutting Edge Angle
90° Included Angle
.63" cutting edge length

HiPos-Plus
12V1G - Backdraft End Mill (Weldon)

Ø1.000"
Weldon Shank
17 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .093", .125", .187", .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø40.00 - 80.00 mm
InnoFit Adaption
17 mm Insert with 2 indexes
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093" R

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø1.500-2.000"
Weldon Shank
17 mm Insert with 2 indexes
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093" R

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø2.000"
50 Taper Connection
17 mm Insert with 2 indexes
Ideal for roughing SS & Hi-Temps
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093" R

HiPos-Plus
22J3G - 90° Rough & Finish Shell Mill

Ø2.000-3.000"
Bore & Keyway
17 mm Insert with 2 indexes
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert Corner: .015", .031", .062" & .093" R

HiPos-Plus
22J3G - 90° Rough & Finish Shell Mill

Ø63-100 mm
Bore & Keyway (Metric)
17 mm Insert with 2 indexes
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert Corner: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8 & 6.4 R

HiPos-Plus
22J5G - 90° Rough & Finish End Mill

Ø2.000"
50 Taper Connection
17 mm Insert with 2 indexes
1/2 Eff. / RH Helix
Produces smooth wall (no steps)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert Corner: .015" .031" .062" .093" .118" .125" .157" .187" & .250" R

HiPos-Plus
2J1G - 90° Face Mill

Ø2.000-8.000"
17 mm Insert with 2 indexes
.63" Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093", .125", .156", .187", .250" R

HiPos-Plus
2J1G - 90° Face Mill

Ø40-160 mm
17 mm Insert with 2 indexes
16 mm Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, 6.4 mm R

HiPos-Plus
2L1G - 75° Roughing Face Mill

Ø4.000"
17 mm Insert with 2 indexes
.15" Depth of cut
Insert Corner: .03" R
Uses opposing unused edges of AOMT17 insert, offering the value to obtain 4 indexes.
Ideal for squaring up blocks and general facing.

Hi-Pos Plus

Operating Guidelines 12J1G, 12L1G, 2J1G 90° Mills

Operating Guidelines 22J_G 90° Extended Flute Mills

Operating Guidelines 12_1G Chamfer Mills

Milling

Holemaking

ISO Turning
