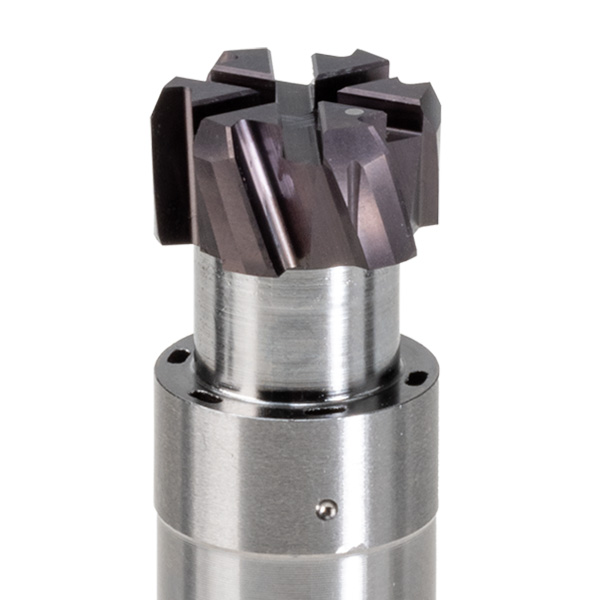

High Speed Indexable Reamer in Smaller Diameters
New Product LineFeatures and Benefits
- Innovative clamping system provides minimal setup and machine downtime
- Excellent hole accuracy and finish (H7 tolerance capable)
- Multiple cutting edges for high productivity
- QwikReamS is the new high speed indexable reaming system for smaller diameters ranging from .3149" - .4724" (8.0 mm - 12.0 mm)
- Straight flute geometry for blind holes and left hand helix for through hole applications
- Through the tool coolant supply to each cutting edge
- Available in inch and metric shanks and 3xD and 5xD lengths
Product Ranges & Details
Diameter Range:
.3149" - .4724"
(8.0 mm - 12.0 mm)
Bodies:
3 x D
5 x D
Cylindrical Shanks (inch & metric)
Head Geometries:
XS...RB1 - Straight flute/blind hole
XS...RT1 - LH flute/through hole
Grade:
IN2005
Materials:
Steel
Stainless Steel
Cast Iron
Non-Ferrous
