Home > Product Lines > T-Clamp Ultra Slitters

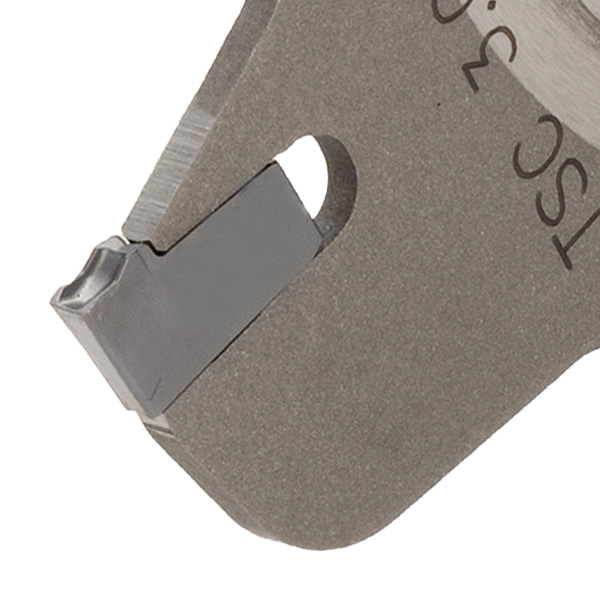

T-Clamp Ultra Slitters closeup image

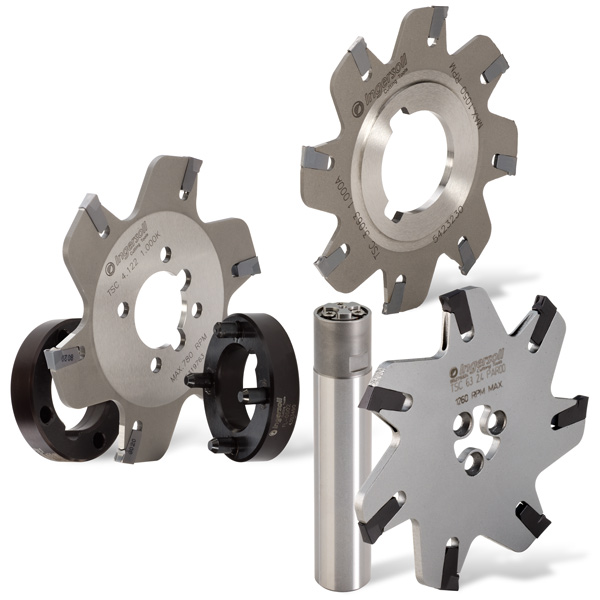

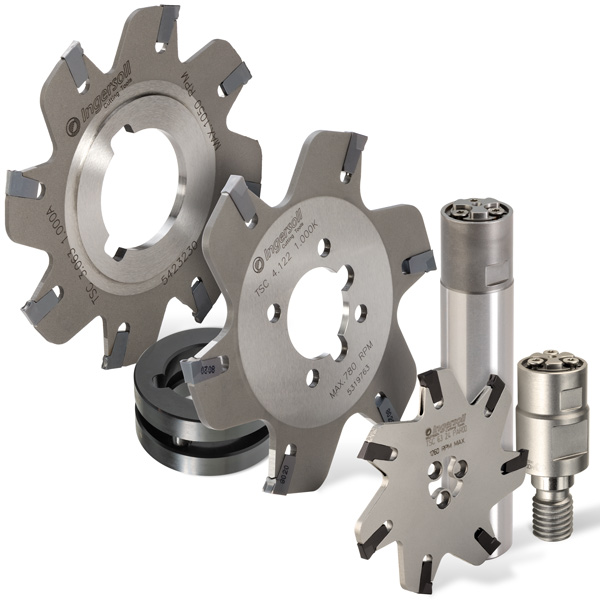

T-Clamp Ultra Slitters group image

Narrow Width Indexable Slitters for Slotting and Sawing

Features and Benefits

Narrow widths starting at .063"
Secure insert retention and easy-to-mount inserts...no wedges, clamps or screws
Self-positioning insert stopper for repeatability and minimal runout
Drive flange mounting for extra stability
An all-effective full-width slitter promotes 2X feed rate when compared to a half-effective stagger-tooth slotter
Special widths and geometries available by quotation

Product Ranges & Details

Diameter Range
Ø3.00"-8.00"
(Ø40.00 - 160.00 mm)

Width Range
.063"-.200"
(1.60 - 5.10 mm)

Insert Series
TIMC, TIPV, TIPV-E

Applications
Slitting & Sawing

Materials
Iron, Steel, Stainless Steel, Hi-Temps, Titanium

Products
Brochures & Manuals

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - .063" Thin Slitter (Integral Hub)

Ø3.00 - 4.00"
.063 Cutting Width
Insert Seat Size 1
Fits Insert Widths: .063"
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - .094" Thin Slitter (Integral Hub)

Ø3.00"
.094" Cutting Width
Insert Seat Size 2
Fits Insert Widths: .094"
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - 1.6 mm Thin Slitter (Integral Hub)

Ø75.00 - 125.00 mm
1.60 mm Cutting Width
Insert Seat Size 1
Fits Insert Widths: 1.6 mm
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - 2.0 mm Thin Slitter (Integral Hub)

Ø75.00 - 100.00 mm
2.00 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - 2.2 mm Thin Slitter (Integral Hub)

Ø75.00 - 100.00 mm
2.20 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_A - 2.46 mm Thin Slitter (Integral Hub)

Ø75.00 - 100.00 mm
2.46 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Arbor Type Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .125" Thin Slitter (No Integral Hub)

Ø4.000-8.000"
.125" Cutting Width
Insert seat size 4
Fits Insert Widths: .125", .156", .189"
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .156" Thin Slitter (No Integral Hub)

Ø4.000-8.000"
.156" Cutting Width
Insert seat size 4
Fits Insert Widths: .125", .156", .189"
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .189" Thin Slitter (No Integral Hub)

Ø4.000-8.000"
.189" Cutting Width
Insert seat size 4
Fits Insert Widths: .125", .156", .189"
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .250" Thin Slitter (No Integral Hub)

Ø6.000-8.000"
.250" Cutting Width
Insert Seat Size 6
Fits Insert Widths: .250"
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 2.0 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
2.00 mm Cutting Width
Insert seat size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 2.2 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
2.20 mm Cutting Width
Insert seat size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 2.46 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
2.46 mm Cutting Width
Insert seat size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 3.0 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
3.00 mm Cutting Width
Insert seat size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 3.1 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
3.10 mm Cutting Width
Insert seat size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 4.0 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
4.00 mm Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 4.1 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
4.10 mm Cutting Width
Insert seat size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 4.8 mm Thin Slitter (No Integral Hub)

Ø100.00 - 160.00 mm
4.80 mm Cutting Width
Insert seat size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
Axial Drive
Full Effective
Replaceable pin-mount hubs

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - .094" (2.38 mm) Modular Thin Slitter

Ø40.00 - 63.00mm
.094" (2.38 mm) Cutting Width
Insert Seat Size 2
Fits Insert Widths: .094"
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - .125" (3.17 mm) Modular Thin Slitter

Ø50.00 - 63.00mm
.125" (3.17 mm) Cutting Width
Insert Seat Size 4
Fits Insert Widths: .125", .156", .189"
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - .156" (3.96 mm) Modular Thin Slitter

Ø50.00 - 63.00mm
.156" (3.96 mm) Cutting Width
Insert Seat Size 4
Fits Insert Widths: .125", .156", .189"
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 1.6 mm (.063") Modular Thin Slitter

Ø40.00 - 63.00mm
1.6 mm (.063") Cutting Width
Insert Seat Size 1
Fits Insert Widths: 1.6 mm (.063")
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 2.0 mm Modular Thin Slitter

Ø40.00 - 63.00mm
2.00 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 2.2 mm Modular Thin Slitter

Ø40.00 - 63.00mm
2.20 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 2.46 mm Modular Thin Slitter

Ø40.00 - 63.00mm
2.46 mm Cutting Width
Insert Seat Size 2
Fits Insert Widths: 2.0, 2.2, 2.46 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 3.00 mm Modular Thin Slitter

Ø50.00 - 63.00mm
3.00 mm Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 3.10 mm Modular Thin Slitter

Ø50.00 - 63.00mm
3.10 mm Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.00 mm Modular Thin Slitter

Ø50.00 - 63.00mm
4.00 mm Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.10 mm Modular Thin Slitter

Ø50.00 - 63.00mm
4.10 mm Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.80 mm (.189") Modular Thin Slitter

Ø50.00 - 63.00mm
4.80 mm (.189") Cutting Width
Insert Seat Size 4
Fits Insert Widths: 3.0, 3.1, 4.0, 4.1, 4.8 mm
TriLink Adaption
Full Effective

Photo of T-Clamp Ultra

T-Clamp Ultra
TIMC - Square Utility Inserts

For Thin Slitters
Width Range: .063"-.189" (1.6 - 4.8 mm)
Seat sizes 1, 2, 4, & 6
Insert Hand: Neutral
Width Tolerance: ± .004" (.10 mm)

Photo of T-Clamp Ultra

T-Clamp Ultra
TIPV - Full Radius Precision Inserts

For Thin Slitters
Width Range: .094"-.125" (3.0 - 4.0 mm)
Seat size: 2 & 4
Insert Hand: Neutral
Width Tolerance: ±.0008" (±.02 mm)

Photo of T-Clamp Ultra

T-Clamp Ultra
TIPV - Square Precision Inserts

For Thin Slitters
Width Range: .078"-.189" (2.0 - 4.0 mm)
Seat sizes 2 & 4
Insert Hand: Neutral
Width Tolerance: ± .0008" (.02 mm)
