Series: TSC_PA - 1.6 mm (.063") Modular Thin Slitter

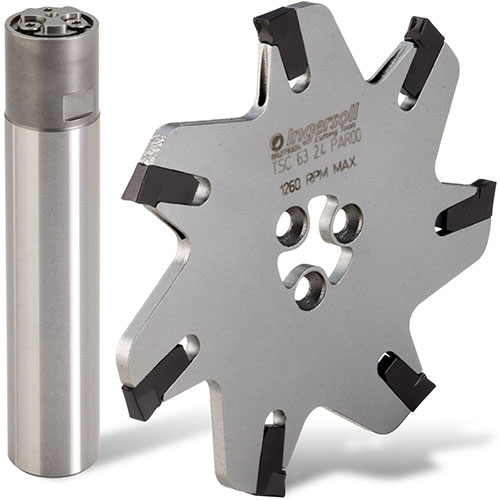

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø40.00 - 63.00mm
- 1.6 mm (.063") Cutting Width
- Insert Seat Size 1
- TriLink Adaption
- Full Effective, Insert Width Dictates Cut Width
EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CWN Cutting Width Min. |
CWX Cutting Width Max. |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
WB Body Width |
CCMS Connection Code Machine Side |
SSC Insert Seat Size |
RPMX RPM Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3721789 | TSC401.6PAR00 | 40.00 mm | 1.60 mm | 1.60 mm | 1.60 mm | 10.0 mm | 5 | 1.40 mm | TriLink PA14 | 1 | 1590 | ||||
| 3721791 | TSC501.6PAR00 | 50.00 mm | 1.60 mm | 1.60 mm | 1.60 mm | 15.0 mm | 6 | 1.40 mm | TriLink PA14 | 1 | 1590 | ||||
| 3721803 | TSC631.6PAR00 | 63.00 mm | 1.60 mm | 1.60 mm | 1.60 mm | 21.5 mm | 7 | 1.40 mm | TriLink PA14 | 1 | 1260 |
