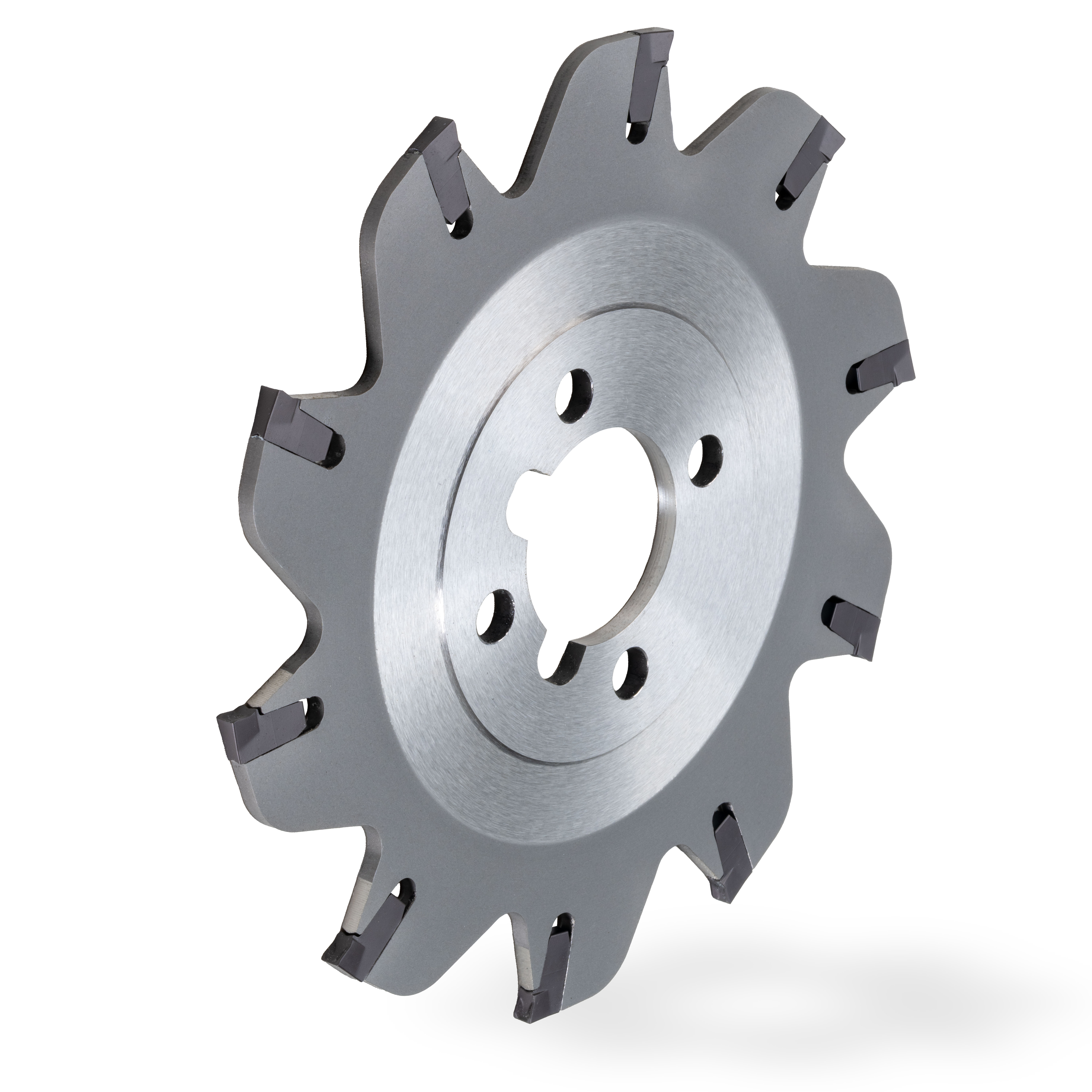

Series: TSC_K - 2.2 mm Thin Slitter (No Integral Hub)
Product Series Features:
- Ø100.00 - 160.00 mm
- 2.20 mm Cutting Width
- Insert seat size 2
- Fits Insert Widths: 2.0, 2.2, 2.46 mm
- Axial Drive
- Full Effective
- Replaceable pin-mount hubs
EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CDX Cutting Depth Max. |
ZNP Peripheral Insert Count |
DHUB Hub Dia. |
HHUB Hub Height |
THUB Hub Thickness |
DCON Bore Dia. |
KWW Keyway |
SSC Insert Seat Size |
RPMX RPM Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2350177 | TSC1002.422K | 100.00 mm | 2.20 mm | 27.0 mm | 10 | 46.0 mm | 10.00 mm | 22.40 mm | 22.00 mm | 6.0 mm | 2 | 800 | ||||
| 2350213 | TSC1252.432K | 125.00 mm | 2.20 mm | 35.0 mm | 12 | 55.0 mm | 10.00 mm | 22.40 mm | 32.00 mm | 8.0 mm | 2 | 640 | n/a | n/a | NA | |
| 2350187 | TSC1602.432K | 160.00 mm | 2.20 mm | 52.5 mm | 16 | 55.0 mm | 12.00 mm | 26.40 mm | 32.00 mm | 8.0 mm | 2 | 500 |
Notes:
- Insert extractor supplied with each cutter.
- Hub-set ordered seperately.
- Note maximum RPM ratings.
- Slitters with Seat Size 6 have been phased out
