EDP: 1927511 Part: P6M1H-.125A025L037R004C Series: P6M1H & P6M2H - 6-Flute 90° SCEM

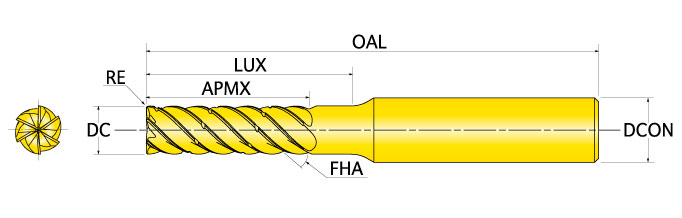

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 5
International: 10
Product Series Features:
- SS_H for Trochoidal & H.E. Milling of Stainless Steel
- Ø.125" - .750"
- Coolant thru for .3125" DC or larger
- 6-Flute, Cylindrical shank
- Chip splitter cutting edge
- Variable Pitch
- Variable (Different) Helix, 45.5° Avg.
- 2x, 3x, 4xD APMX
- Corner Radius: .004" .008" .015" .030" .060" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
