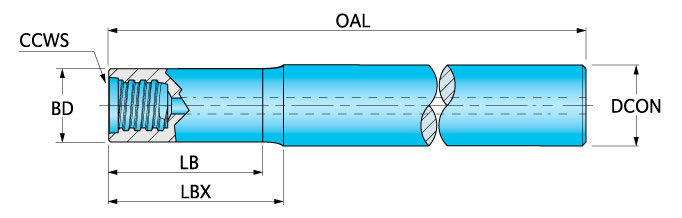

EDP: 2929992 Part: S075T12CA-25-01 Series: S*T*CA - Carbide Shank, Necked
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
International: 78
Product Series Features:
- Cylindrical Shank
- Chip Surfer Connection
- Neck Relief
- Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length
Notes:
- When assembling, be sure carbide tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
- Tightening Torque:
- T05=60 in lb
- T06=90 in lb
- T08=130 in lb
- T10=250 in lb
- T12=250 in lb
- T15=350 in lb
- T21=973 in lb
