EDP: 2929994 Part: S037T06HA-45-01 Series: S*T*HA - Heavy Metal Shank, No Neck

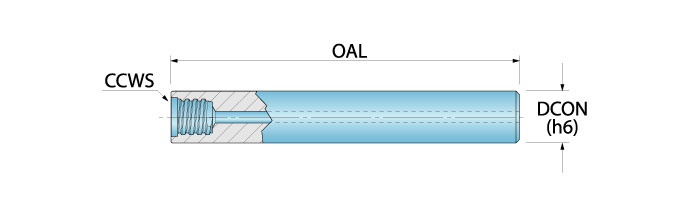

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 4
International: 27
Product Series Features:
- Cylindrical Shank
- Chip Surfer Connection
- No Neck Relief
- Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder
Notes:
- When assembling, be sure carbide tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
- Tightening Torque:
- T05=60 in lb
- T06=90 in lb
- T08=130 in lb
- T10=250 in lb
- T12=250 in lb
- T15=350 in lb
