EDP: 6401011 Part: TDXU4E-0.4 PV3030 Series: TDXU-E
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 230
International: 138
Product Series Features:
- Pressed Double-Ended Insert
- For Parting, Grooving, & Turning

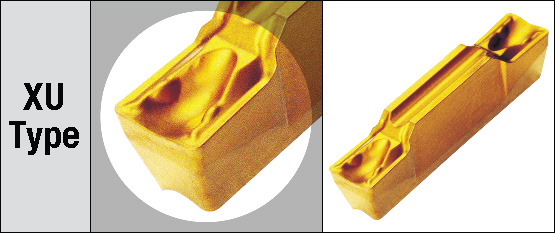

- XU-Type Chipbreaker
Groove-Turn Chip Breakers
- 1st choice for general use in groove-turn
- Multi functional chip breaker for external, internal, and face machining
- Low cutting force and good chip control
- Medium-to-high feed grooving, low-to-medium feed turning
- Steel, stainless steel and heat resistant alloy
- For external and internal grooving as well as turning applications
- Good chip control when external face grooving and turning
- Flat bottom surface machining
- Low-to-medium feed grooving, medium-to-high feed turning
- Ideal for steel, stainless steel, cast iron and super alloys machining
- Stable cutting edge and flat bottom surface machining in grooving and parting
- Covers C-type chip breaker applications including a built-in chip breaker for turning applications
- Medium-to-high feed range
- Steel, cast iron, stainless steel and heat resistant alloys
- 1st choice for side turning of cast iron
- Turning and grooving with various geometry
- Steel and cast iron
- High feed rate
- 1st choice for profiling in steel and cast iron
- Tough cutting edge
- Good chip control even in low depth
- Good surface finish
- High feed rate and low depth of cut
- 1st choice for medium to finishing machining of heat-resistant super alloys
- For external and internal profiling, turning and grooving applications
- Low cutting force and good surface finish due to the sharp edge
- Precision machining and excellent repeatability
- 1st choice for profiling in non-ferrous materials
- Very sharp cutting edge
- Ceramic insert
- Recommended for aged cast iron material
- Not recommended for grooving in steel
