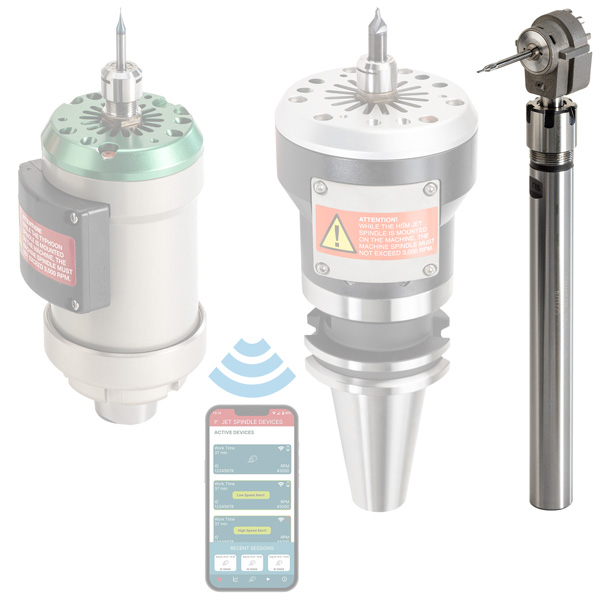

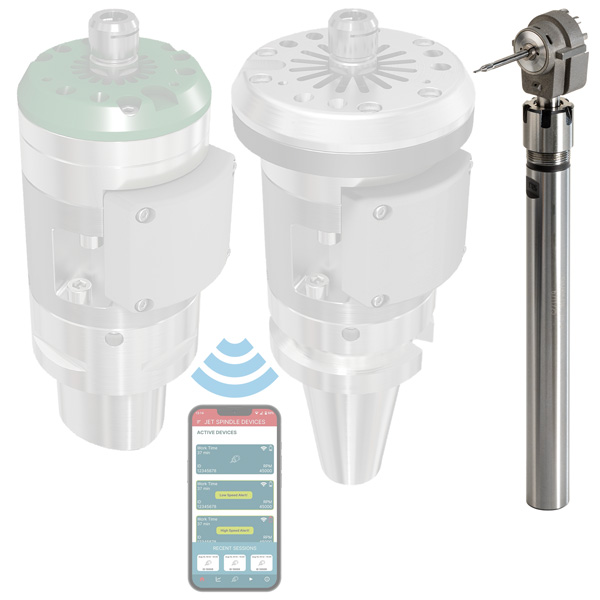

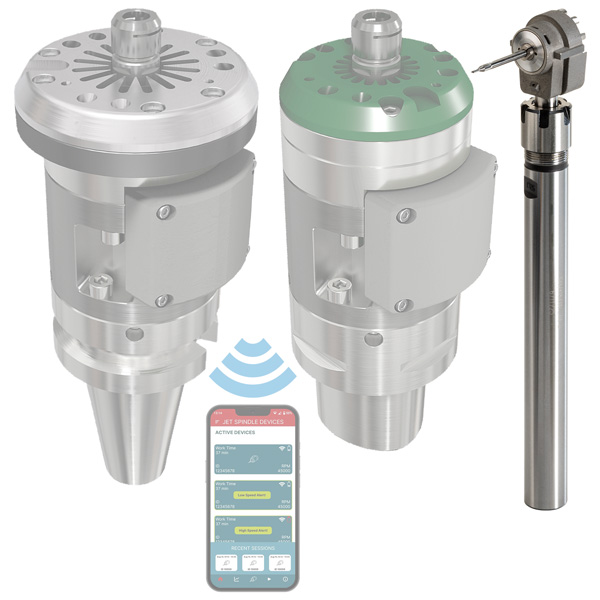

High Speed Coolant-Driven Spindles For Small Diameter Applications

Features and Benefits

• Driven by your machine’s existing coolant supply while the machine’s main spindle remains stationary
• Requires no outside power feed such as air or electricity
• No pre-installation or machine modification
• Compact & Lightweight
• Plug & Play designs fit right into your ATC or Turret
• Compatible with Turn-Mill, Turning, and Milling machines
• Direct jet coolant for fast & efficient chip removal
• Ideal for a wide range of finishing and semi-finishing applications using micro to small diameter cutting tools
• No cycle time limitations
• Modular adaptions are compatible with any standard ER32 collet chuck, enabling flexibility for use in multiple spindle adaptions

MICRO Spindles

• Powerful solution for accurate machining in difficult to reach areas
• Ideal for turning and milling holders in limited space Swiss-type machines
• Provides live tooling capabilities to static pockets
• Capable of achieving speeds of 53K RPM
• Compatible with coolant pressure ranging from 290-580psi
