A Double-Sided Mini-Size Insert and Holder Line, an Economical Alternative to Standard Positive Turning and Boring Inserts
Product Line Expansion☆ = NEW
Features and Benefits

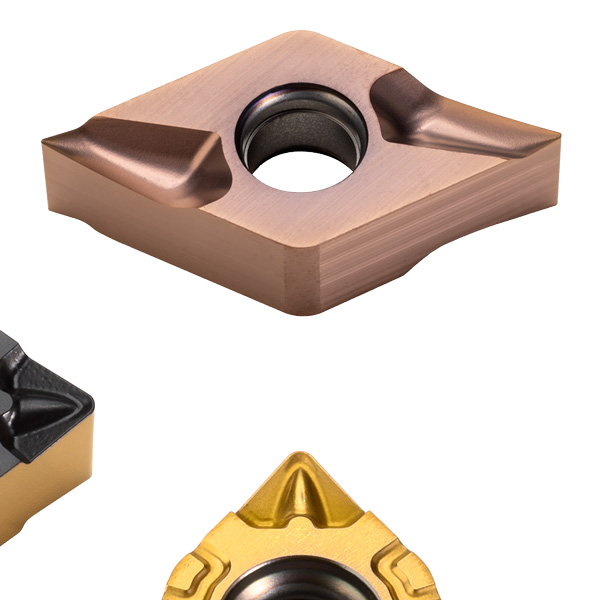

- Double-sided miniature inserts (7 mm IC)
- 4 cutting edges compared to 2 cutting edges from traditional positive-type inserts
- Optimized turning for low depths of cut: up to 2 mm (FGP/SM chip breakers) and up to 3 mm (ST chip breaker)
- Inserts feature the same cutting edge angle as standard positive inserts (zero degrees)
- Low cutting forces promote very good surface finish
- Excellent chip control at lower depths of cut
- Stable screw clamping
- Suitable for general purpose machining of small parts, especially on Swiss type automatic lathes
- New coolant-through carbide shanks for CNMX/CNGX inserts, available in 3/8 in. and 1/2 in. sizes
Product Ranges & Details
Inserts:
CNGX 2.220.5 ☆
CNMX 2.221
CNMX 2.222
DNGX 2.220
DNGX 2.220.5
DNGX 2.221
DNMX 2.221
DNMX 2.222
WNMX 2.221
WNMX 2.222
Insert Corner Radii:
CNGX-SM: .008"
CNMX-FGP: .016", .031"
DNGX-SM, DNGX-ST: .004". .008", .016"
DNMX-FGP: .016", .031"
WNMX-FGP: .016", .031"
Chip Breaker Designations:
FGP - Finishing to semi-finishing
SM - Medium depth of cut for medium
ST - Maximum depth of cut for roughing ☆
Grades:
CT3000 – Uncoated Cermet
PV3010, PV3020 – Coated Cermet
TT3020 – PVD-Coated for High Temp Super Alloys
TT4430, TT9020 – PVD-Coated for General Purpose
TT5080 – PVD-Coated for SS and High Temp Alloys
TT8115B, TT8125B – CVD-Coated for Steel
TT9225 – CVD-Coated for SS and High Temp Alloys
Materials:
Steel
Stainless Steel
Super Alloys

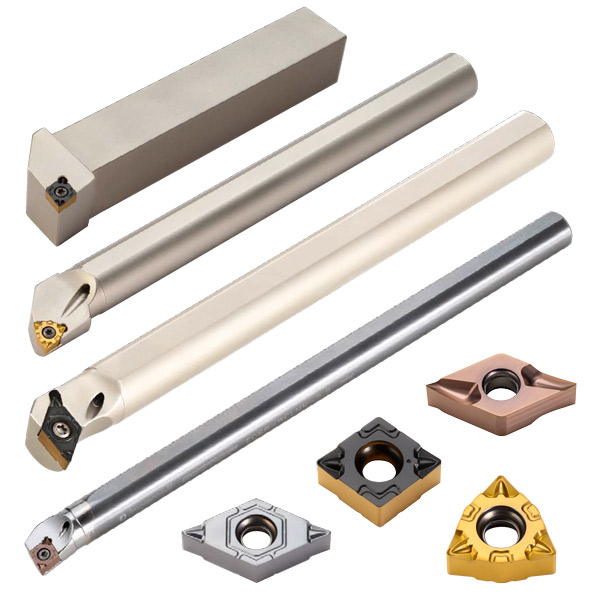

External Holders:
Swiss Automatics – .500", .625", 12 mm, 16 mm
Conventional lathes - .625", .750"
Boring Bars:
Conventional lathes - .375", .500" .625"
