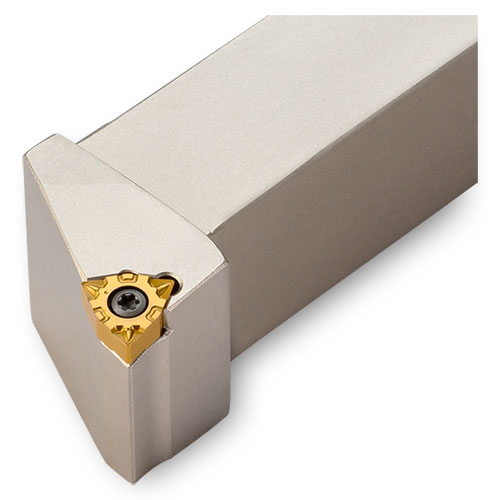

Series: SWLNR/L - External Holder
Product Series Features:
- Negative 80° Trigon WN_X-0403 Inserts
- -5° Lead, Screw Held
- .625-.750" Shank

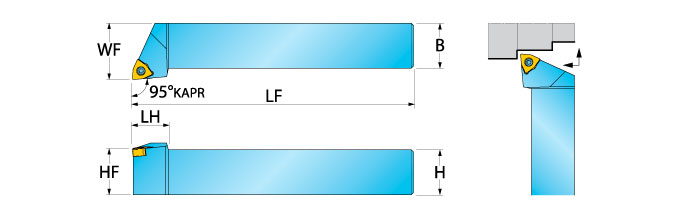

EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HAND Hand |
MIID Master Insert Identification |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 6211488 | SWLNL10-2.2B | 0.625 | 0.625 | 0.625 | 4.5 | 0.750 | 0.63 | Left | WNMX040304FGP | |
| 6211487 | SWLNR10-2.2B | 0.625 | 0.625 | 0.625 | 4.5 | 0.750 | 0.63 | Right | WNMX040304FGP | |
| 6211490 | SWLNL12-2.2B | 0.750 | 0.750 | 0.750 | 4.5 | 1.000 | 0.78 | Left | WNMX040304FGP | |
| 6211489 | SWLNR12-2.2B | 0.750 | 0.750 | 0.750 | 4.5 | 1.000 | 0.78 | Right | WNMX040304FGP |
