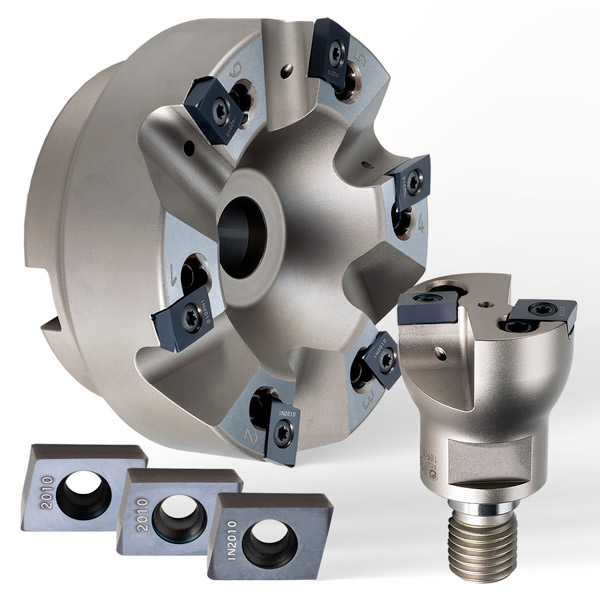

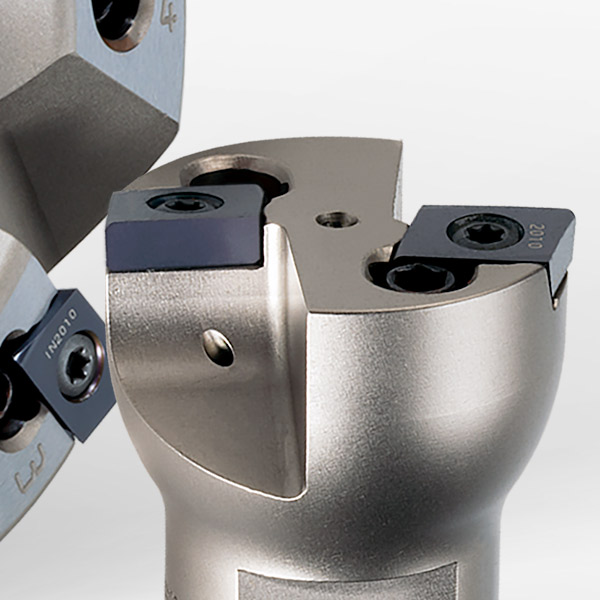

Adjustable Finish Mills
Features and Benefits
- Easy and accurate adjustment within 0.005 mm
- Crowned cutting edge produces 15-32 Ra surface finish range
- Long Wiper produces best Ra finish
- Short Wiper reduces face pressure
- Can Mill up to a 90° Shoulder
- Coolant Thru
Product Ranges & Details
Cutter Series (Depth of Cut)
16F1B / 6F2B (0.50 mm)
Insert Series
YDA323L: Long Finishing Edge
YDA323L114: Short Finishing Edge
Diameter Range
30.00–315.00 mm
Corner Radii
0.50, 1.00 mm R
Adaptions
Top-On and Face Mill
Materials:
Steel
Cast Iron
Stainless Steel
Non-Ferrous
High-Temp Alloys
