Series: 16F1B- Finish End Mill

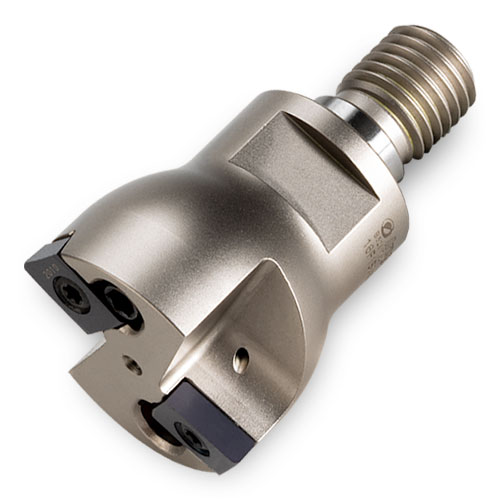

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø30.00 - 40.00mm
- TopOn Adaption
- 12.7 mm Insert with 2 indexes
- 0.5 mm Max Depth of Cut
- Finishes as good as 15 Ra
EDP |
Part Number |
DC Cutting Dia. |
LF Functional Length |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|
| 3079143 | 16F1B030043X8R00 | 30.00 mm | 43.0 mm | 1 | TopOn M16 | 28.0 mm | |
| 3079845 | 16F1B035043X8R00 | 35.00 mm | 43.0 mm | 2 | TopOn M16 | 29.0 mm | |
| 3079145 | 16F1B040043X8R00 | 40.00 mm | 43.0 mm | 2 | TopOn M16 | 29.0 mm |
