Drill, C'Sink, C'Bore, Spotface, Plunge-Mill, Drill-Mill... Chip Surfer Tips that Leverage the Strong Z-Axis
Features and Benefits
- 45V Plunge Tips are equipped with a flat bottom face and backdraft side, resulting in single point contact for minimal radial pressure; ideal for long reaches, especially when relieving 90° corners for finish operations.
- 45D Drill Mill Tips generate 90° shoulders, ramp aggressively and drill up to .35xD; An economical shoulder mill solution and ideal for producing blind key-slots.
- CND Flat Bottom Drills and are designed to accommodate entry into inclined surfaces; ideal for C’Bores.
- 45Z Center Drills comply with ANSI B94 & DIN 332.
- 45Z NC Spot Drills facilitate accurate hole locating without use of a guide bushing.
- Carbide tips can be changed on the machine in seconds and repeat within +/-.0005"
Product Ranges & Details
Tip Series / Style:
45V: Flat Bottom Plunge Mill Spotface
45D: 90° Drill-Mill & Ramp

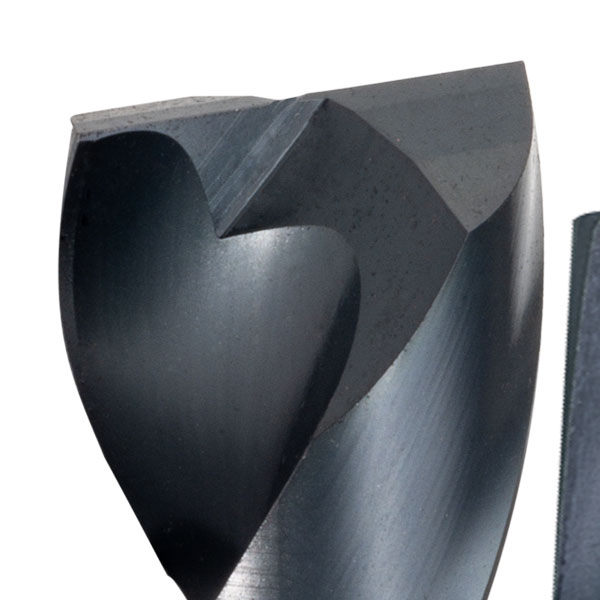

CND: Flat Bottom Drill / C’Bore
45Z: Center Drill (Drill & C’Sink)
45Z: 90° & 145° NC Spot Drill
Diameter Range:
45V: .312”-.625” (8-16mm)
45D: .312”-.625” (7.8-16mm)
CND: 8-20mm
45Z: .13”-.25” (3.2-6.4mm)
45Z: .312”-.625” (8-16mm)
Adaption:
T05, T06, T08, T10 & T12
Materials:
Steel, Stainless Steel, Iron, Hi-Temp Alloys, Titanium, Aluminum
