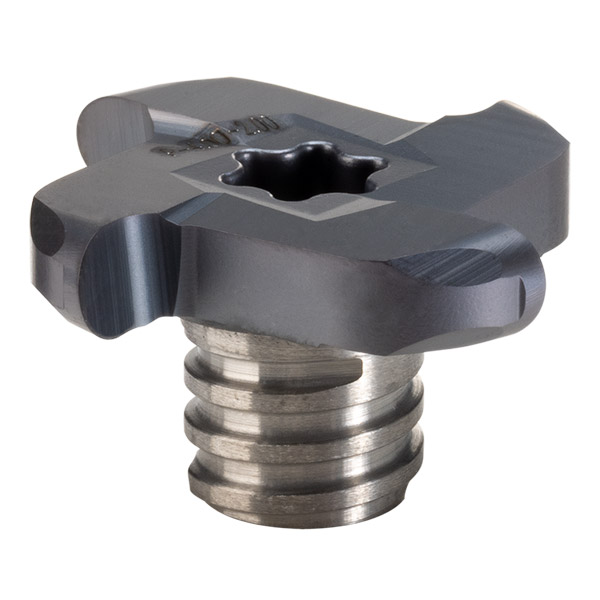

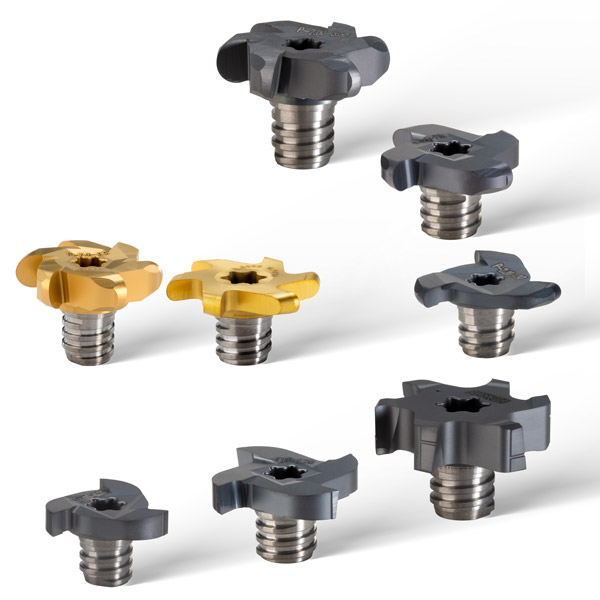

Chip Surfer T-Slot Tips closeup image Chip Surfer T-Slot Tips group image

An Expansive Chip Surfer T-Slot Line


Features and Benefits

  • Tips repeat within +/-.0005 and can be indexed on the machine in seconds.
  • Ideal for high production environments.
  • Multi-Purpose geometries for steel/iron & Keen-Edge geometries for soft/gummy materials.
  • Full-Effective slitters to maximize narrow width productivity; Stagger-Tooth slotters for efficient machining of wide slots.
  • 3 & 4-flute options ideal for internal interpolation of O-Ring grooves; 6-flute for utmost straight line milling performance.
  • Steel, heavy metal and carbide shank choices with different coolant delivery styles.
  • Solid ER, 40 taper, HSK and C-Adapter integral shanks offerings.
  • Feature variations can be quoted.

Product Ranges & Details

Tip Series (# of Flutes)
16T Square Slot (3)
16R Full Radius (3)
17T Square Slot (4)
17R Full Radius (4)
18T Square Slot (6)
18R Full Radius (6)

Width Range
0.062 – 0.375"
0.76 – 10.0mm

Diameter Range
0.500 – 1.000"
7.7 – 27.7mm

Adaptions
T05, T06, T08, T10

Materials
Steel, Stainless Steel, Iron, Aluminum, Hi-Temp Alloys & Titanium
