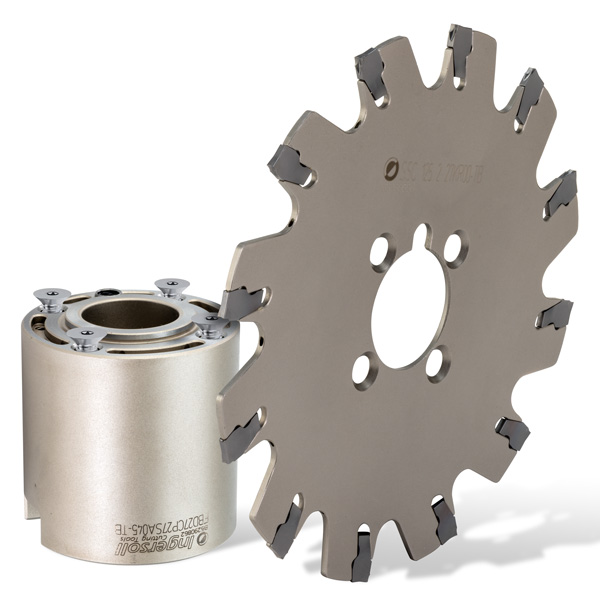

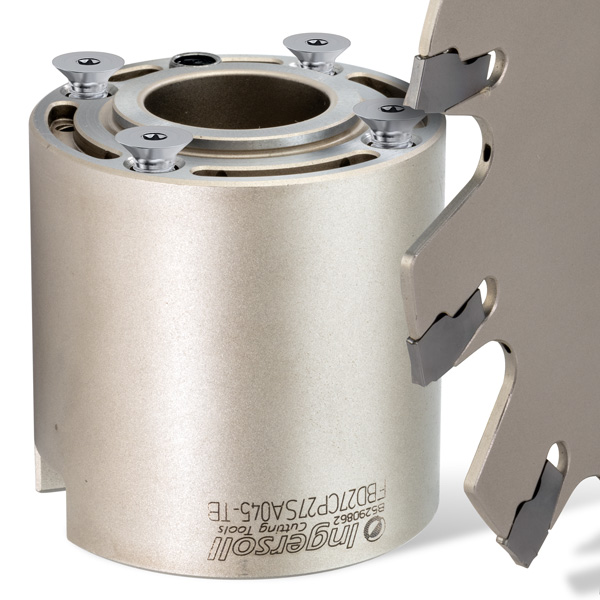

closeup shot group shot
Featuring Inserts

Narrow Width Coolant-Thru Slitters

New Product Line

Features and Benefits

  • Internal coolant precisely directed to cutting edges by way of 3D additive technology for efficient chip evacuation
  • Radial drive adapters engineered to deliver coolant to slitters
  • Flat cutter face allows for grooving up to 90° shoulders
  • Form-fitting insert seat with wide inserts for utmost durability
  • Positive and negative insert edge preps for cutting various materials and finishes
  • Modular design allows for adaption flexibility (Radial drive or Arbor mount)
  • Inserts used for Mills (WinCut Slitters) and Lathe (WinCut Parting & Grooving)

Product Ranges & Details

Cutter Series
SSC

Insert Series
SFC, SFJ

Width Range
2.00–3.00 mm

Radial Depth of Cut
0.75–2.00" (19–51.5 mm)

Adaption Range
Inch: 0.750", 1.000", 1.250"
Metric: 22.0, 27.0, 32.0 mm

Applications
Slitting & Sawing

Materials
Steel
Stainless Steel
Cast Iron
Non-Ferrous
High-Temp Alloys
Hardened Steel
