Series: IPB - FH_SLDE

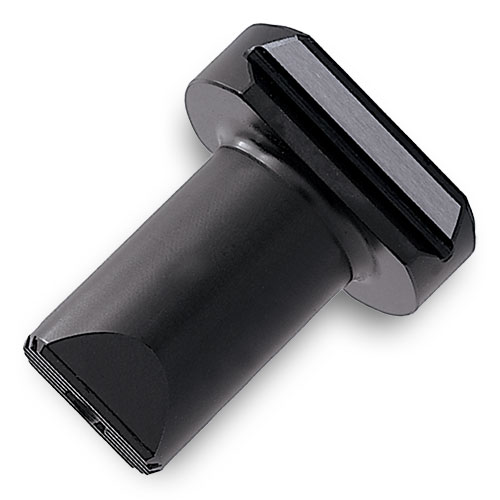

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Dovetail Holder for AFH/AFHE
- IPB compatible
- For use with AFH/AFHE-IPB63 & AFH/AFHE-IPB80
EDP |
Part Number |
ISO Number |

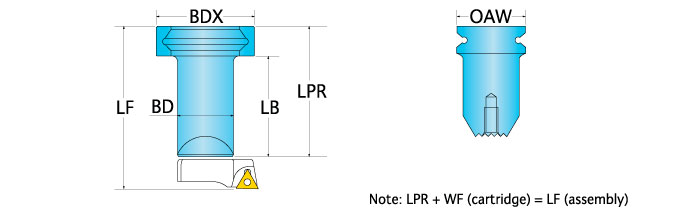

BD Body Dia. |
BDX Body Dia. Max. |
OAW Overall Width |
LB Body Length |
LPR Protruding Length |
CASC Cartridge Size Code |
WT Weight (lb) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2941798 | FH-SLDE-30-115 | FH-SLDE-30-115 | 1.062 | 1.692 | 1.200 | 4.527 | 5.02 | 25, 32 | 1.540 | |
| 2941796 | FH-SLDE-30-40 | FH-SLDE-30-40 | 0.984 | 1.692 | 1.200 | 1.574 | 2.07 | 25, 32 | 0.660 | |
| 2941797 | FH-SLDE-30-70 | FH-SLDE-30-70 | 0.984 | 1.692 | 1.200 | 2.755 | 3.25 | 25, 32 | 0.880 | |
| 2941800 | FH-SLDE-40-114 | FH-SLDE-40-114 | 1.259 | 2.204 | 1.574 | 4.488 | 5.16 | 32, 40 | 2.200 | |
| 2941801 | FH-SLDE-40-189 | FH-SLDE-40-189 | 1.496 | 2.204 | 1.574 | 7.440 | 8.11 | 32, 40 | 4.410 | |
| 2941799 | FH-SLDE-40-69 | FH-SLDE-40-69 | 1.259 | 2.204 | 1.574 | 2.716 | 3.39 | 32, 40 | 1.540 |
Notes:
- **For stock D'Andrea items. Refer to series here.
