CPMW090308-
EDP:
Part: CPMW090308-
Series: CP** - IT.TE.DI. PCD ISO

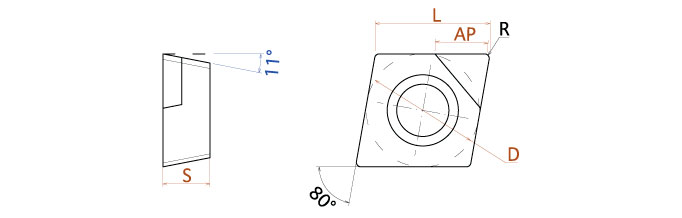

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View Image
Downloads
EPSR Insert Included Angle
80
NOI Number of Indexes
1
IC Inscribed Circle Dia.
9.520
RE Corner Radius
0.800
L Cutting Edge Length
9.700
S Thickness
3.180
D1 Fixing Hole Dia.
4.400
AN Clearance Angle Major
11
IH Insert Hand
Neutral
ap Cutting Depth Max.
4.000
Product Series Features:
- Positive 11° Clearance 80° Rhombic PCD Inserts
| EPSR - Insert Included Angle | 80 |
| NOI - Number of Indexes | 1 |
| IC - Inscribed Circle Dia. | 9.520 |
| RE - Corner Radius | 0.800 |
| L - Cutting Edge Length | 9.700 |
| S - Thickness | 3.180 |
| D1 - Fixing Hole Dia. | 4.400 |
| AN - Clearance Angle Major | 11 |
| IH - Insert Hand | Neutral |
| ap - Cutting Depth Max. | 4.000 |
