EDP: 3056561 Part: 6F2B100R00 Series: 6F2B Finish Face Mill

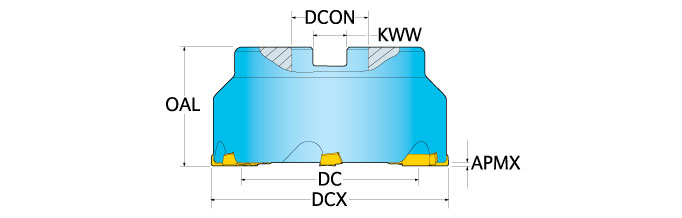

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 0
Product Series Features:
- Ø50 mm - 315 mm
- 12.7 mm Finishing Insert with 2 Indexes
- 0.5 mm Max Depth of Cut
- Easy & accurate adjustment within 0.005 mm
- DC is measured at the center of the crowned insert
- Finishes 15 - 32 Ra
- Can mill up to 90° shoulder
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000724 | SM40-110-00 | SE02-78 | Screw, M4 × 0.7 × 11 mm, T15 Torx drive | n/a | n/a | n/a | ||
| 7057261 | SC050-01 | SCB50-01 | Barrel Screw, Right Hand, M5 × 0.8 × 15 mm; 4 mm Hex drive | n/a | n/a | n/a | ||
| 7051675 | DIN912M16X30-12.9 | ISO4762M16X30-12.9 | SHCS, M16 × 2.00 × 30 mm, 14 mm Hex | n/a | n/a | n/a | ||
| 7000078 | DS-T15B | DS-0003 | T15 Torx Bit; 1.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 7000076 | DS-T15T | DS-0010 | T15 T-Handle Torx Driver | Optional Accessory Item; Sold separately | n/a | n/a | n/a | |
| 2920528 | DT-35-.25 | DT-35-.25 | Torque Adapter Unit preset to 35 in lb (4.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a | |
| 7066401 | PN072-03 | PN072-03 | Eccentric Pin, Ø6 mm × 25 mm, 4 mm Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a |
