EDP: 5873246 Part: 45M12012T8RA30 IN2005 Series: 45NMP_RA - Chamfer & Spotting Tip

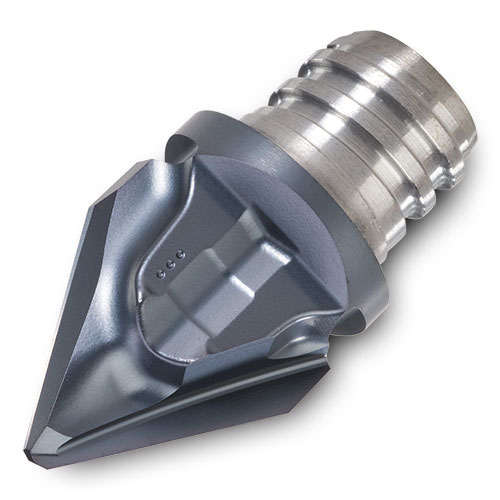

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 8
International: 618
Product Series Features:
- Ø8-20 mm
- Chip Surfer Connection
- Cutting Edge Angle options: 18° 30° 40° 45° 50° & 60°
- Included Angle options: 144° 120° 100° 90° 80° & 60°
- 80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°)
- 2 Flute
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7011296 | DT-130-07 | DT-130-07 | Torque Wrench for T08 Chip Surfer Heads 7 mm Opening Pre-Set to 130 in lbs | Optional Accessory Item; Sold separately | n/a | n/a | n/a | |
| 7008924 | WS-0030 | WS-0030 | 7mm (C) & 10mm (D) wrench head openings for use with T08 Chip Surfer tooling | Optional Accessory Item; Sold separately | n/a | n/a |
