Home > T-Clamp Ultra > TIPV - Full Radius Precision Inserts > TIPV3.00E1.50

EDP:

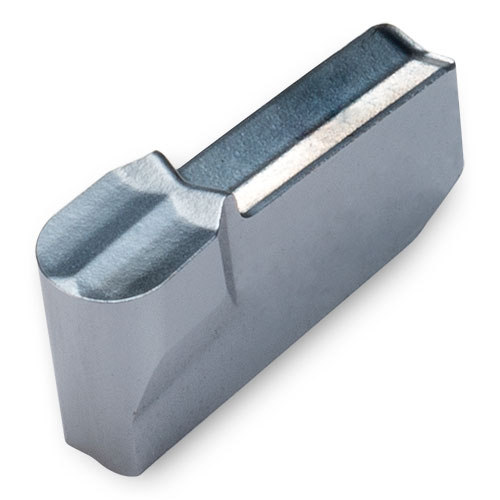

Part: TIPV3.00E1.50
Series: TIPV - Full Radius Precision Inserts

Application

3.00 +/-0.02mm Width - Neutral Geometry

RE Corner Radius

1.50 mm

CW Cutting Width

3.00 mm

SSC Insert Seat Size

4

NOI Number of Indexes

1

IH Insert Hand

Neutral

Product Series Features:

For Thin Slitters
Width Range: .094"-.125" (3.0 - 5.0 mm)
Seat size: 2 & 4
Insert Hand: Neutral
Width Tolerance: ±.0008" (±.02 mm)

Application	3.00 +/-0.02mm Width - Neutral Geometry
RE - Corner Radius	1.50 mm
CW - Cutting Width	3.00 mm
SSC - Insert Seat Size	4
NOI - Number of Indexes	1
IH - Insert Hand	Neutral

Choose a Section

	Edp	Part Number	Part Number2	Grade
	6450155	TIPV3.00E1.50 K10	TIPV3.00E1.50 K10	K10
	6450156	TIPV3.00E1.50 TT5100	TIPV3.00E1.50 TT5100	TT5100
	6450157	TIPV3.00E1.50 TT6030	TIPV3.00E1.50 TT6030	TT6030

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .125" Thin Slitter

Ø4.000-8.000"
.125" Cutting Width
Insert seat size 4
Axial Drive & Bolt Circle
Full Effective, Insert Width Dictates Cut Width
Drive Flange / Drive Shank Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - .156" Thin Slitter

Ø4.000-8.000"
.156" Cutting Width
Insert seat size 4
Axial Drive & Bolt Circle
Full Effective, Insert Width Dictates Cut Width
Drive Flange / Drive Shank Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 3.0 mm Thin Slitter

Ø100.00 - 160.00 mm
3.00 mm Cutting Width
Insert seat size 4
Axial Drive & Bolt Circle
Full Effective, Insert Width Dictates Cut Width
Drive Flange / Drive Shank Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_K - 3.1 mm Thin Slitter

Ø100.00 - 160.00 mm
3.10 mm Cutting Width
Insert seat size 4
Axial Drive & Bolt Circle
Full Effective, Insert Width Dictates Cut Width
Drive Flange / Drive Shank Body Design

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - .125" (3.18 mm) Modular Thin Slitter

Ø50.00 - 63.00mm
.125" (3.18 mm) Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - .156" (3.96 mm) Modular Thin Slitter

Ø50.00 - 63.00mm
.156" (3.96 mm) Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 3.00 mm Modular Thin Slitter

Ø50.00 - 63.00mm
3.00 mm Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 3.10 mm Modular Thin Slitter

Ø50.00 - 63.00mm
3.10 mm Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.00 mm Modular Thin Slitter

Ø50.00 - 63.00mm
4.00 mm Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.10 mm Modular Thin Slitter

Ø50.00 - 63.00mm
4.10 mm Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

Photo of T-Clamp Ultra

T-Clamp Ultra
TSC_PA - 4.80 mm (.189") Modular Thin Slitter

Ø50.00 - 63.00mm
4.80 mm (.189") Cutting Width
Insert Seat Size 4
TriLink Adaption
Full Effective, Insert Width Dictates Cut Width

NEW-273 T-Clamp Ultra - Narrow Width Slitters

Operating Guidelines
