EDP: 5884440 Part: 22L3R045050F1R00 Series: 22_3R - Chamfer Shell Mill

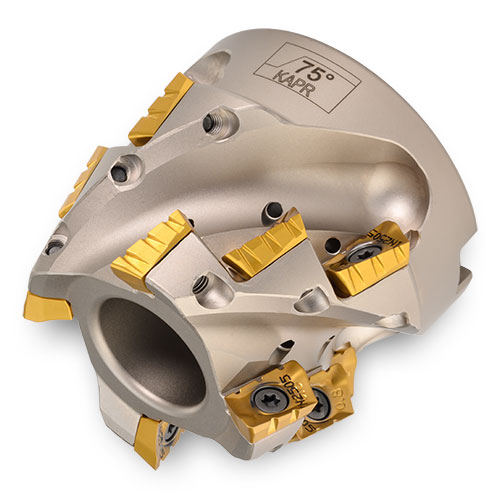

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 2
International: 3
Product Series Features:
- Ø45.00 mm Min.
- Bore & Keyway
- 33.00 mm cutting edge length
- 13 mm Insert with 2 indexes
- Cutting Edge Angles: 15° 30° 45° 60° & 75°
- Included Angles: 150° 120° 90° 60° & 30°
- All Eff. / RH Helix
- Insert radii: 0.4, 0.8, 1.6, 2.0, 2.4, 3.1, 4.0 mm R
Notes:
- Total Number of Inserts = ZNF + ZNP
