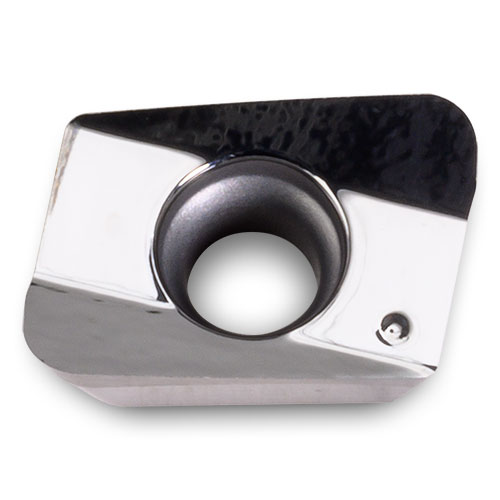

Home > HiPos-Micro > AOCT06_AL - Insert for Non-Ferrous > AOCT060208R-AL

EDP:
Part: AOCT060208R-AL
Series: AOCT06_AL - Insert for Non-Ferrous

Application

Grd/Pol for Al

RE Corner Radius

0.031

BS Wiper Length

0.009

LE Cutting Edge Eff. Length

0.216

INSL Insert Length

0.256

W1 Insert Width

0.165

S Thickness

0.102

NOI Number of Indexes

2

IH Insert Hand

Right

Product Series Features:

Up-sharp edge & polished rake face
Ideal for non-ferrous materials
2 Indexes

Application	Grd/Pol for Al
RE - Corner Radius	0.031
BS - Wiper Length	0.009
LE - Cutting Edge Eff. Length	0.216
INSL - Insert Length	0.256
W1 - Insert Width	0.165
S - Thickness	0.102
NOI - Number of Indexes	2
IH - Insert Hand	Right

Choose a Section

	Edp	Part Number	Part Number2	Grade
	5613043	AOCT060208R-AL IN10K	AOCT060208R-AL IN10K	IN10K

Photo of HiPos-Micro

HiPos-Micro
12_1D - Chamfer Mill

Ø10 mm Min.
Cylindrical Shank (Metric)
6 mm Insert with 2 indexes
Cutting Edge Angles: 30°, 45°, 60°
Included Angles: 120°, 90°, 60°
Shank modifications can be made by cutting off the back to desired length

Photo of HiPos-Micro

HiPos-Micro
12_1D Chamfer Mill

Ø.31" Min (Extended Weldon)
30°, 45°, 60° Cutting Edge Angles
120°, 90°, 60° Included Angles
6 mm Insert with 2 indexes
Shank modifications can be made by cutting off the back to desired length

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.375-1.000"
Weldon Shank
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.375-.625"
Cylindrical Shank
.22" Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.500-1.500"
TopOn Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10.00 - 25.00 mm
InnoFit Connection
6 mm Insert with 2 indexes
5.70 mm Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-25 mm
Cylindrical Shank (Metric)
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø9.5-25 mm
Weldon Shank (Metric)
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-35 mm
TopOn Connection
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-20 mm
Chip Surfer Connection
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End MIll

Ø.375-.750"
Chip Surfer Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° End Mill for Live Tools & Swiss

Ø.750-1.000"
Chip Surfer Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
Large diameter heads fit small ER Shanks
Ideal for milling flats and hex on round stock

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° End Mill for Swiss & Live Tooling

Ø.750-2.000"
Cylindrical Shank
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
.22" Depth of cut

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° End Mill

Ø16-25 mm
Weldon Shank (Metric)
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.2, 0.4, 0.8, 1.6mm R

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° End Mill (Metric)

Ø16-25 mm
InnoFit Adaption
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.2, 0.4, 0.8, 1.6mm R

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° Extended Flute End Mill

Ø.625-.750"
Weldon Shank
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R

Photo of HiPos-Micro

HiPos-Micro
2J1D - 90° Face Mill

Ø32-40 mm
6 mm Insert with 2 indexes
5.7 mm Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
2J1D - 90° Face Mill

Ø1.50"-2.00"
.22" Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert Corner: SC, .008" .015", .031", .062"R & Hi-Feed

HiPosMicro
