Home > Qwik-Twist > YBB > 5140146 YBB2340R01 IN2005

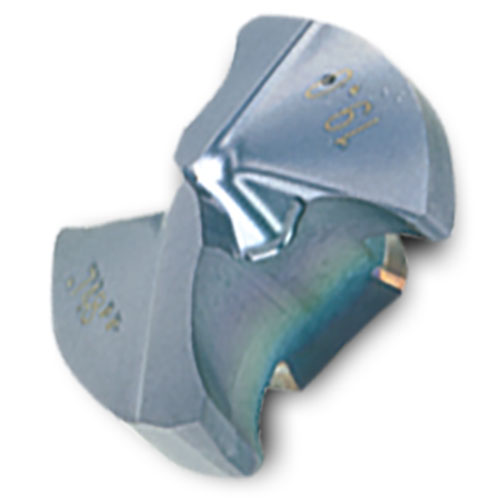

EDP: 5140146
Part: YBB2340R01 IN2005
Series: YBB

DC Cutting Dia.

0.9213 (23.40 mm)

SSC Insert Seat Size

23

PL Point Length

0.168

LPR Projection Length

0.386

LF Functional Length

0.242

BCH Corner Chamfer Length

0.065

KCH Corner Chamfer Angle

30

SIG Point Angle

140

Available : 0
International: 14

Product Series Features:

Qwik Twist 140° Replaceable Tips
Cast Iron
Grade IN2005

DC - Cutting Dia.	0.9213 (23.40 mm)
SSC - Insert Seat Size	23
PL - Point Length	0.168
LPR - Projection Length	0.386
LF - Functional Length	0.242
BCH - Corner Chamfer Length	0.065
KCH - Corner Chamfer Angle	30
SIG - Point Angle	140

Related Tools

Qwik-Twist
Y 3:1 Bodies Inch Universal Shank

Replaceable Tipped Drill Bodies
L:D Ratio - 3:1
Geometry: Positive
**OBSOLETE PRODUCT LINE**
Refer to the following for stocked alternative:
GoldTwist, series TD-3xD Replaceable Tip Drill

Qwik-Twist
Y 5:1 Bodies Inch Universal Shank

Replaceable Tipped Drill Bodies
L:D Ratio - 5:1
Geometry: Positive
**OBSOLETE PRODUCT LINE**
Refer to the following for stocked alternatives:
GoldTwist, series TD-5xD Replaceable Tip Drill

Qwik-Twist
Y 8:1 Bodies Inch Universal Shank

Replaceable Tipped Drill Bodies
L:D - 8:1
**OBSOLETE PROUCT LINE**
Refer to the following for stocked alternatives:
GoldTwist, series TD - 8xD Replaceable Tip Drill
