EDP: 2913242 Part: 55H-11R09 Series: Cartridges for 4W2A Face Mills

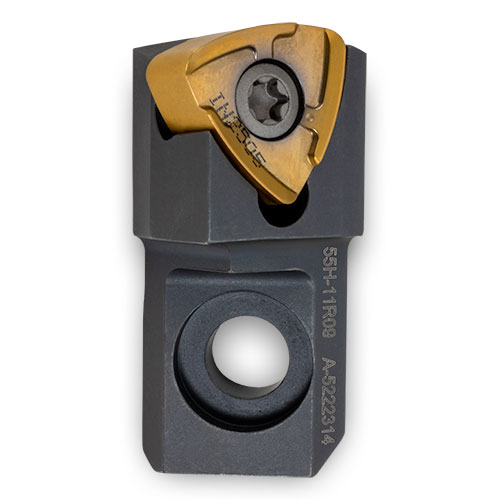

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 144
Product Series Features:
- Cartridges for 4W2A Face Mill
- 90°, Lead Angle, Button & Hi-Feed insert options

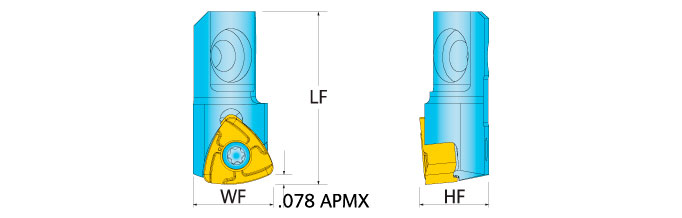

- Depth of Cut Range: 0.078 - 0.660"
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 4352485 | SM50-106-50 | SM50-106-50 | Screw, M5 × 0.8 × 10.6 mm, T20 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002090 | DS-T206B | BLD T20/S7 | T20 Torx Driver Blade, 90 mm OAL, 6 mm Hex | n/a | n/a | |||
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Qwik-Torque T-Flying Driver Handle with 1/4" Drive; For use with Preset Torque Adapter units 17.7 in lb (2.0N·m) to 44 in lb (5.0N·m) | n/a | n/a | n/a | ||
| 7018957 | DS-T20B1 | DS-T20B1 | T20 Torx Bit, 2.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold separately | n/a | n/a | n/a | |
| 2920529 | DT-44-.25 | DT-44-.25 | Preset Torque Adapter unit with 1/4" internal & external magnetic drive; Preset to 44 in lb (5.0 N·m) | Optional Accessory Item; Sold separately | n/a | n/a | n/a |
