Home > Quad-Drill Plus > SHLT-N > SHLT090408N

EDP:

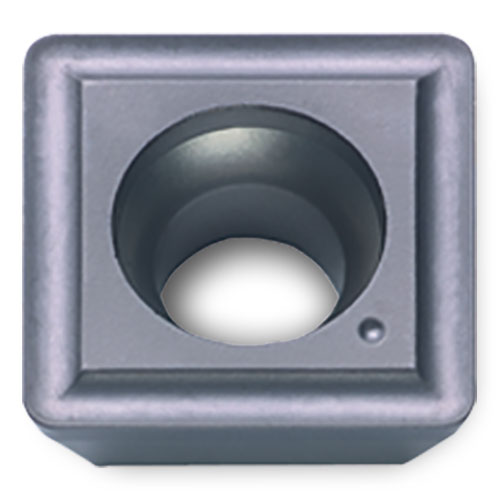

Part: SHLT090408N
Series: SHLT-N

Plunging

Coolant-Thru

Drilling

Application

Cast Iron

RE Corner Radius

0.031

IC Inscribed Circle Dia.

0.385

S1 Thickness (Overall)

0.169

NOI Number of Indexes

4

IH Insert Hand

Neutral

Product Series Features:

4 Cornered Insert for Quad Drill+
Cast Iron

Plunging

Coolant-Thru

Drilling

Application	Cast Iron
RE - Corner Radius	0.031
IC - Inscribed Circle Dia.	0.385
S1 - Thickness (Overall)	0.169
NOI - Number of Indexes	4
IH - Insert Hand	Neutral

Available Grades
Related Tools

	Edp	Part Number	Part Number2	Grade
	5101050	SHLT090408N IN2010	SHLT090408N IN2010	IN2010
