EDP: 4561605 Part: COOLINGTUBEC5 Series: COOLING TUBE

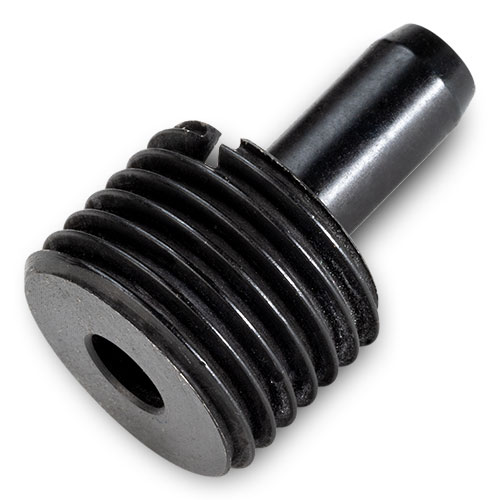

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 0
International: 62
Product Series Features:
- Coolant Tube
- Required for use with all coolant through HSK and C-Adapter Spindles
- Optional Accessory Item - Sold separately
- Refer to machine manual prior to mounting C# Cooling Tube to confirm clamping drawbar has O-ring inside. Mount cooling tube by using the "Mount" side of the Cooling Tube C# Wrench (Sold separately)
- *See additional notes below
Notes:
- *Apply Loctite 542 (or equivalent) on coolant tube thread to secure/seal the thread.
- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 3313025 | WRENCHCOOLTUBEC5 | WRENCHCOOLTUBEC5 | C5 Cooling Tube Wrench | Optional Accessory Item; Sold separately | n/a | n/a | n/a |
