EDP: 4509287 Part: BT40SRKIN16X120 Series: BT*SRKIN (Metric)

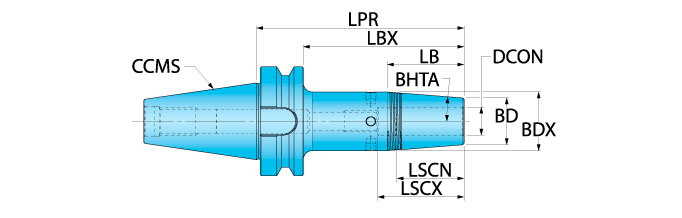

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
International: 9
Product Series Features:
- BT MAS-403
- METRIC Thermal Shrink Chuck
- AD Style Coolant (coolant through the center)
- For use with Inductive Heating Device ONLY
- BT40 balanced G2.5@25,000RPM
- BT50 balanced G2.5@20,000RPM
Notes:
- **Unbalance value of less than 1 gr x mm cannot be guaranteed
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 4503920 | PRESETSCREWM16X20B | PRESETSCREWM16X20B | Preset / Stop Screw, M16 × 2 × 20 mm, 7.5 mm coolant hole | n/a | n/a | n/a |
