Home > Chip-Surfer > 47N & 48N - Chamfer & Countersink Tip > 5811429 48N16006TRRA45 IN2005

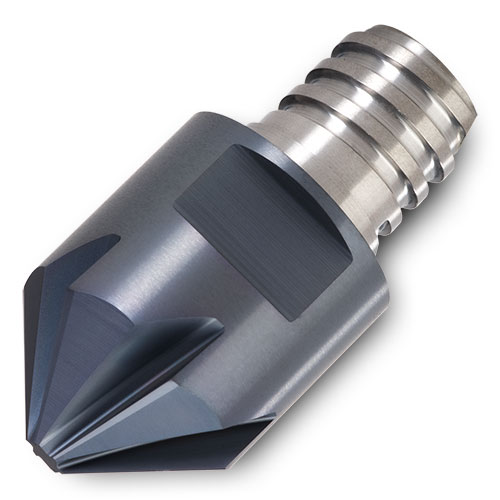

Trade Logo  EDP: 5811429  Part: 48N16006TRRA45 IN2005  Series: 47N & 48N - Chamfer & Countersink Tip

Available : 42
International: 2072

Product Series Features:

  • Ø1.95 mm Min.
  • Chip Surfer Connection
  • 4 & 6 Flute
  • Cutting Edge Angle options: 30°, 45°, 49° & 60°
  • Included Angle options: 120°, 90°, 82° & 60°
  • Non-center cutting
Notes:
  • When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.

Chip-Surfer
C*T

  • C-Adapter (ISO 26623-1)
  • Chip Surfer Connection
  • Neck Relief
  • Quick Change Holder
  • AD Style with Ported Coolant delivery
  • Do not apply lubricant to the threaded connection.
  • *See Notes below

Chip-Surfer
C*T (Metric)

  • C-Adapter (ISO 26623-1)
  • Chip Surfer Connection
  • Neck Relief
  • Quick Change Holder
  • AD Style with Ported Coolant delivery
  • Do not apply lubricant to the threaded connection
  • *See Notes below

Chip-Surfer
DIN69871*T (Metric)

  • DIN69871 V-Flange
  • Chip Surfer Connection
  • AD Style Coolant (coolant through the center)
  • Balanced G2.5@20,000 RPM
  • Do not apply lubricant to the threaded connection

Chip-Surfer
ER*T - Solid ER, Neck Relief

  • Solid ER
  • Chip Surfer Connection
  • Neck Relief
  • Coolant Options

Chip-Surfer
HSKA*T

  • HSK-A (DIN 69893/A)
  • Chip Surfer Connection
  • Balanced G2.5@20,000 RPM
  • AD Style Coolant
  • Do not apply lubricant to the threaded connection
  • *See Notes below

Chip-Surfer
HSKA*T (Metric)

  • HSK-A (DIN 69893/A)
  • Chip Surfer Connection
  • Balanced G2.5@20,000 RPM
  • AD Style Coolant
  • Do not apply lubricant to threaded connection
  • *See Notes below

Chip-Surfer
S*T*CA - Carbide Shank, Necked

  • Cylindrical Shank
  • Chip Surfer Connection
  • Neck Relief
  • Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Chip-Surfer
S*T*CA - Carbide Shank, Necked

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Neck Relief
  • Coolant options
  • Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Chip-Surfer
S*T*CA - Carbide Shank, No Neck

  • Cylindrical Shank
  • Chip Surfer Connection
  • No Neck Relief
  • Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Chip-Surfer
S*T*CK - Carbide Shank, Cone Neck

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Conical Neck

Chip-Surfer
S*T*CK - Carbide Shank, Cone Neck

  • Cylindrical Shank
  • Chip Surfer Connection
  • Conical Neck

Chip-Surfer
S*T*HA - Heavy Metal Shank, Necked

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Neck Relief
  • Coolant options
  • Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Chip-Surfer
S*T*HA - Heavy Metal Shank, No Neck

  • Cylindrical Shank
  • Chip Surfer Connection
  • No Neck Relief
  • Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Chip-Surfer
S*T*HK - Heavy Metal, Cone Neck

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Conical Neck
  • Coolant options

Chip-Surfer
S*T*NA - Steel Shank, Thrust Cool

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Neck Relief
  • Thrust Cool System equipped with brazed Coolant Collar and Coolant Grooves for precise delivery down the Neck OD to the tip's cutting edges
  • Thrust Cool Shanks are ideal for use with carbide tips that do not have coolant holes

Chip-Surfer
S*T*NA - Steel Shank, Thrust Cool

  • Cylindrical Shank
  • Chip Surfer Connection
  • Neck Relief
  • Thrust Cool System equipped with brazed Coolant Collar and Coolant Grooves for precise delivery down the Neck OD to the tip's cutting edges
  • Thrust Cool Shanks are ideal for use with carbide tips that do not have coolant holes

Chip-Surfer
S*T*SA - Steel Shank, Necked

  • Cylindrical Shank
  • Chip Surfer Connection
  • Neck Relief
  • Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Chip-Surfer
S*T*SA - Steel Shank, Necked

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • Neck Relief
  • Coolant options
  • Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Chip-Surfer
S*T*SA - Steel Shank, No Neck

  • Cylindrical Shank (Metric)
  • Chip Surfer Connection
  • No Neck Relief
  • Coolant options
  • Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Chip-Surfer
S*T*SA - Steel Shank, No Neck

  • Cylindrical Shank
  • Chip Surfer Connection
  • No Neck Relief
  • Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Chip-Surfer
S*T*SK - Steel Shank, Cone Neck

  • Cylindrical Shank
  • Chip Surfer Connection
  • Conical Neck

Chip-Surfer
T_T_SA - Extension

  • Chip Surfer to Chip Surfer
  • Neck Relief

Chip-Surfer
T_T_SK - Reducer

  • Chip Surfer to Chip Surfer
  • Neck Relief

Chip-Surfer
W*T*SA - Steel Weldon, Necked

  • Weldon Shank
  • Chip Surfer Connection
  • Stubby Neck Relief

Chip Surfer Line, Chamfer Spot C'Sink Tips

Operating Guidelines
