EDP: 5811434 Part: 45P10009T6RA60 IN2005 Series: 45NMP_RA - Chamfer & Spotting Tip

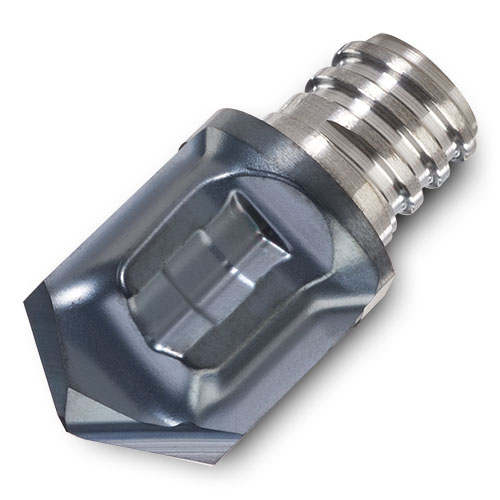

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 24
International: 684
Product Series Features:
- Ø8-20 mm
- Chip Surfer Connection
- Cutting Edge Angle options: 18° 30° 40° 45° 50° & 60°
- Included Angle options: 144° 120° 100° 90° 80° & 60°
- 80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°)
- 2 Flute
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 5899704 | DT-90-05 | DT-90-05 | Torque Wrench for T06 Chip Surfer Heads 5 mm Opening Pre-Set to 90 in lbs | Optional Accessory Item; Sold separately | n/a | n/a | n/a | |
| 7008923 | WS-0029 | WS-0029 | 5 mm (C) & 8 mm (D) wrench head openings for use with T06 Chip Surfer tooling | Optional Accessory Item; Sold Separately | n/a | n/a |
