Home > DiPosDuo > MNHU06_PH - Insert for SS/Hi-Temp/Ti > 6182494 MNHU060304R-PH IN2505

EDP: 6182494

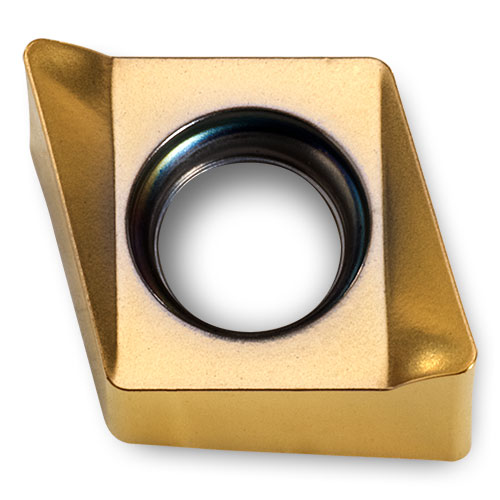

Part: MNHU060304R-PH IN2505
Series: MNHU06_PH - Insert for SS/Hi-Temp/Ti

Application

SS/Hi-Temp/Ti

RE Corner Radius

0.015

LE Cutting Edge Eff. Length

0.240

INSL Insert Length

0.260

W1 Insert Width

0.260

S Thickness

0.184

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 120
International: 2889

Product Series Features:

Keen edge for SS/Hi-Temp/Ti
Pressed rake face geometry promotes efficient chip formation
4 Indexes

Application	SS/Hi-Temp/Ti
RE - Corner Radius	0.015
LE - Cutting Edge Eff. Length	0.240
INSL - Insert Length	0.260
W1 - Insert Width	0.260
S - Thickness	0.184
NOI - Number of Indexes	4
IH - Insert Hand	Right
