Home > DiPosDuo > MNHU09_M - Multi-Purpose Insert > 6169752 MNHU090416R-M IN2505

EDP: 6169752

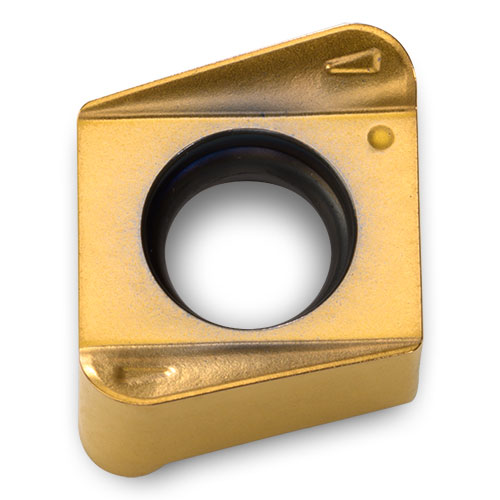

Part: MNHU090416R-M IN2505
Series: MNHU09_M - Multi-Purpose Insert

Application

Multi-Purpose

RE Corner Radius

0.062

LE Cutting Edge Eff. Length

0.314

INSL Insert Length

0.338

W1 Insert Width

0.338

S Thickness

0.224

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 50
International: 5414

Product Series Features:

Pressed rake face geometry promotes efficient chip formation
Designed for multiple materials and applications
4 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.062
LE - Cutting Edge Eff. Length	0.314
INSL - Insert Length	0.338
W1 - Insert Width	0.338
S - Thickness	0.224
NOI - Number of Indexes	4
IH - Insert Hand	Right

Choose a Section

Photo of DiPosDuo

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

Ø1.000-1.500"
Weldon Shank
9 mm Insert with 4 indexes
90°: .32" DOC, Hi-Feed: .059" DOC
Insert corners: .015", .031", .062" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP)
63-125 Ra finishes when using insert with no integrated wiper

Photo of DiPosDuo

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

Ø1.000-1.500"
Cylindrical Shank
9 mm Insert with 4 indexes
90°: .32" DOC, Hi-Feed: .059" DOC
Insert corners: .015" .031" .062" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP).
63-125 Ra finishes when using insert with no integrated wiper

Photo of DiPosDuo

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

Ø1.000-1.500"
TopOn Connection
9 mm Insert with 4 indexes
90°: .32" DOC, Hi-Feed: .059" DOC
Insert corners: .015" .031" .062" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP).
63-125 Ra finishes when using insert with no integrated wiper

Photo of DiPosDuo

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

Ø20-32 mm
Weldon Shank (Metric)
9 mm Insert with 4 indexes
90°: 8 mm DOC, Hi-Feed: 1.5 mm DOC
Insert corners: 0.4, 0.8, 1.6 mm R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP)
63-125 Ra finishes when using insert with no integrated wiper

Photo of DiPosDuo

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

Ø20-40 mm
TopOn Connection
9 mm Insert with 4 indexes
90°: 8mm DOC, Hi-Feed: 1.5 mm DOC
Insert corners: 0.4, 0.8, 1.6 mm R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP).
63-125 Ra finishes when using insert with no integrated wiper

Photo of DiPosDuo

DiPosDuo
TJ5F - 90° & Hi-Feed Face Mill

Ø40-80 mm
9 mm Insert with 4 indexes
8 mm 90° Depth of Cut
1.5 mm Hi-Feed Depth of Cut
Insert corners: 0.4, 0.8, 1.6mm R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o wiper

Photo of DiPosDuo

DiPosDuo
TJ6F - 90° & Hi-Feed Face Mill

Ø1.500-4.000"
9 mm Insert with 4 indexes
.32" 90° Depth of Cut
.059" Hi-Feed Depth of Cut
Insert corners: .015" .031" 062" R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o integrated wiper

DiPosDuo

Operating Guidelines (90-Degree)

Ramp Data
