Home > HiPos-Micro > AOMT06 - Multi-Purpose Insert > 5813372 AOMT060204R IN2530

EDP: 5813372

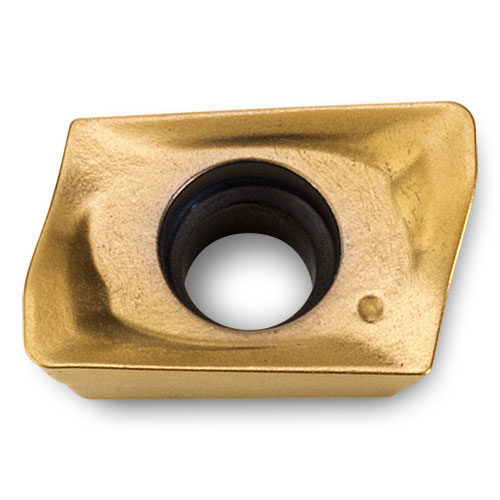

Part: AOMT060204R IN2530
Series: AOMT06 - Multi-Purpose Insert

View STEP

Application

Multi-Purpose

RE Corner Radius

0.015

BS Wiper Length

0.020

LE Cutting Edge Eff. Length

0.220

INSL Insert Length

0.228

W1 Insert Width

0.166

S Thickness

0.103

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 1210
International: 3425

Product Series Features:

Pressed rake face geometry promotes efficient chip formation
Integrated wiper flat on face for producing surface finishes as good as 32 Ra
Diverse corner configurations
Designed for multiple materials and applications
2 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.015
BS - Wiper Length	0.020
LE - Cutting Edge Eff. Length	0.220
INSL - Insert Length	0.228
W1 - Insert Width	0.166
S - Thickness	0.103
NOI - Number of Indexes	2
IH - Insert Hand	Right
DXF File
STEP Light File
STEP Detailed File

Choose a Section

Photo of HiPos-Micro

HiPos-Micro
12_1D - Chamfer Mill

Ø10 mm Min.
Cylindrical Shank (Metric)
6 mm Insert with 2 indexes
Cutting Edge Angles: 30°, 45°, 60°
Included Angles: 120°, 90°, 60°
Shank modifications can be made by cutting off the back to desired length

Photo of HiPos-Micro

HiPos-Micro
12_1D Chamfer Mill

Ø.31" Min (Extended Weldon)
30°, 45°, 60° Cutting Edge Angles
120°, 90°, 60° Included Angles
6 mm Insert with 2 indexes
Shank modifications can be made by cutting off the back to desired length

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.375-1.000"
Weldon Shank
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.500-1.500"
TopOn Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10.00 - 25.00 mm
InnoFit Connection
6 mm Insert with 2 indexes
5.70 mm Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø.375-.625"
Cylindrical Shank
.22" Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-25 mm
Cylindrical Shank (Metric)
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø9.5-25 mm
Weldon Shank (Metric)
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-35 mm
TopOn Connection
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End Mill

Ø10-20 mm
Chip Surfer Connection
5.7 mm Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° & Hi-Feed End MIll

Ø.375-.750"
Chip Surfer Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° End Mill for Live Tools & Swiss

Ø.750-1.000"
Chip Surfer Connection
6 mm Insert with 2 indexes
.22" Depth of cut
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
Large diameter heads fit small ER Shanks
Ideal for milling flats and hex on round stock

Photo of HiPos-Micro

HiPos-Micro
12J1D - 90° End Mill for Swiss & Live Tooling

Ø.750-2.000"
Cylindrical Shank
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
.22" Depth of cut

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° End Mill

Ø16-25 mm
Weldon Shank (Metric)
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.2, 0.4, 0.8, 1.6mm R

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° End Mill (Metric)

Ø16-25 mm
InnoFit Adaption
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.2, 0.4, 0.8, 1.6mm R

Photo of HiPos-Micro

HiPos-Micro
22J3D - 90° Extended Flute End Mill

Ø.625-.750"
Weldon Shank
6 mm Insert with 2 indexes
All Eff. / RH Helix
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: SC, .008", .015", .031", .062" R

Photo of HiPos-Micro

HiPos-Micro
2J1D - 90° Face Mill

Ø32-40 mm
6 mm Insert with 2 indexes
5.7 mm Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed

Photo of HiPos-Micro

HiPos-Micro
2J1D - 90° Face Mill

Ø1.50"-2.00"
.22" Depth of cut
6 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert Corner: SC, .008" .015", .031", .062"R & Hi-Feed
