Home > ISO Ceramic Inserts > TNMG CE > 5701582 TNMG160408CE AB30

EDP: 5701582
Part: TNMG160408CE AB30
Series: TNMG CE

View STEP

EPSR Insert Included Angle

60

NOI Number of Indexes

6

IC Inscribed Circle Dia.

0.375

RE Corner Radius

0.031

L Cutting Edge Length

0.650

S Thickness

0.187

D1 Fixing Hole Dia.

0.150

IH Insert Hand

Neutral

fn Cutting Feed Min.

0.0020

fn Cutting Feed Max.

0.0080

ap Cutting Depth Min.

0.004

ap Cutting Depth Max.

0.098

Available : 50
International: 467

Product Series Features:

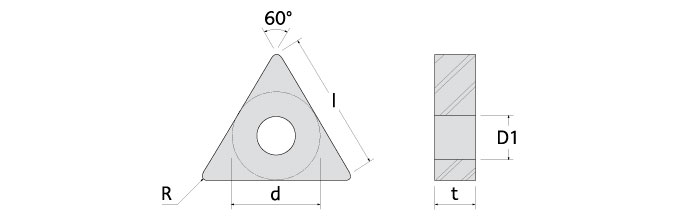

Triangular ceramic inserts, pressed to size

EPSR - Insert Included Angle	60
NOI - Number of Indexes	6
IC - Inscribed Circle Dia.	0.375
RE - Corner Radius	0.031
L - Cutting Edge Length	0.650
S - Thickness	0.187
D1 - Fixing Hole Dia.	0.150
IH - Insert Hand	Neutral
fn - Cutting Feed Min.	0.0020
fn - Cutting Feed Max.	0.0080
ap - Cutting Depth Min.	0.004
ap - Cutting Depth Max.	0.098
DXF File
STEP Light File
STEP Detailed File

Photo of ISO Turn Triangular

ISO Turn Triangular
A-TTFNR/L - Internal Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-1° Lead, Multidirectional Clamp
1.000-1.250" Shank
Coolant Thru

Photo of ISO Turn Triangular

ISO Turn Triangular
C_-TTGNR/L - External Holder

C-Adapter (ISO 26623-1)
Negative Triangular TN_G/TN_M/TN_A Inserts
-1° Lead, Multidirectional Clamp
C4-C6
Coolant Thru

Photo of ISO Turn Triangular

ISO Turn Triangular
C_-TTJNR/L - External Holder

C-Adapter (ISO 26623-1)
Negative Triangular TN_G/TN_M/TN_A Inserts
-3° Lead, Multidirectional Clamp
C4-C6
Coolant Thru

Photo of ISO Turn Triangular

ISO Turn Triangular
MTCNN - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
Neutral Lead, Facing, Lock Pin Clamp
.500-1.000" Clamp

Photo of ISO Turn Triangular

ISO Turn Triangular
MTENN - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
Neutral Lead, Lock Pin Clamp
.625-1.250" Clamp

Photo of ISO Turn Triangular

ISO Turn Triangular
MTFNR/L - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
0° Lead, Facing, Lock Pin Clamp
.500-1.500" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
MTGNR/L - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
0° Lead, OD Turning, Lock Pin Clamp
.625-1.500" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
MTJNR/L - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-3° Lead, OD Turning, Lock Pin Clamp
.625-1.500" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
S-MTFNR/L - Internal Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-1° Lead, Lock Pin Clamp
1.000-2.000" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
S-MTUNR/L - Internal Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-3° Lead, Lock Pin Clamp
1.000-2.000" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
TTFNR/L - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-1° Lead, Facing, Multidirectional Clamp
.750-1.000" Shank

Photo of ISO Turn Triangular

ISO Turn Triangular
TTJNR/L - External Holder

Negative Triangular TN_G/TN_M/TN_A Inserts
-3° Lead, OD Turning, Multidirectional Clamp
.750-1.250" Shank
Holders for 1/2" IC Inserts Compatible with Combi-Clamp
