EDP: 3722574 Part: FBD32CP32SA060-TB Series: FBD - Radial Drive Adapter, Coolant Thru

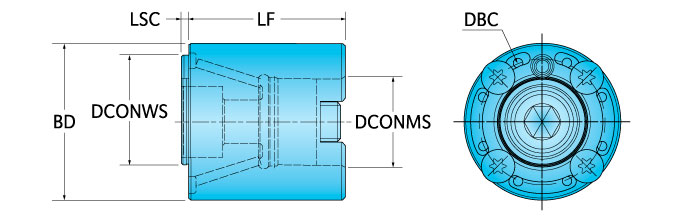

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
Product Series Features:
- Drive Shank Adapter (Metric)
- Converts Axial Drive 4 Pin Mount to Radial Drive
- Coolant Through!
- For use with SSC Slitters
- Interchangeable with Inch and Metric milling heads
- Enables machining with larger overhang
- Useful in deep cavity machining applications
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000260 | SR76-943 | SR76-943 | Screw, M6 x 1, T20 Torx Drive | n/a | n/a | n/a | ||
| 7052032 | DIN912M16X45-12.9 | ISO4762M16X45-12.9 | SHCS, M16 × 2.00 × 45 mm, 14 mm Hex | n/a | n/a | n/a | ||
| 3716691 | ISO8735-8X16-A-ST | ISO8735-8X16-A-ST | Lock Pin ISO 8735-8X16 | n/a | n/a | n/a | ||
| 7000078 | DS-T15B | DS-0003 | T15 Torx Bit; 1.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 7002096 | DS-T156B | BLD T15/S7 | T15 Torx; 90 mm OAL; 6 mm Hex drive | Optional Accessory Item; Sold separately | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | Optional Accessory Item; Sold separately | n/a | n/a | n/a | |
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920528 | DT-35-.25 | DT-35-.25 | Torque Adapter Unit preset to 35 in lb (4.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory Item; Sold separately | n/a | n/a | n/a |
