Home > Form-Master V > CNHU > 3060771 CNHU110420N IN2530

EDP: 3060771

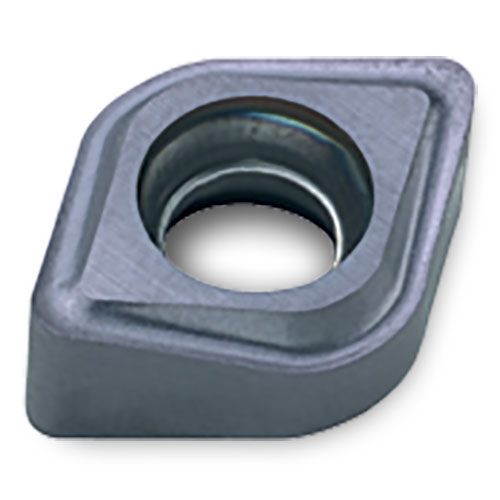

Part: CNHU110420N IN2530
Series: CNHU

Application

Finish/Semi-Finish

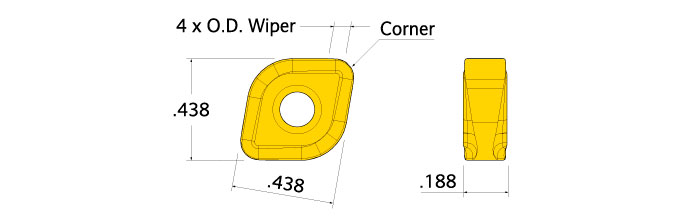

RE Corner Radius

2.00 mm

INSL Insert Length

0.438

W1 Insert Width

0.438

S Thickness

0.188

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 210
International: 73

Product Series Features:

Pressed rake face geometry

Application	Finish/Semi-Finish
RE - Corner Radius	2.00 mm
INSL - Insert Length	0.438
W1 - Insert Width	0.438
S - Thickness	0.188
NOI - Number of Indexes	4
IH - Insert Hand	Neutral

Related Tools

Photo of Form-Master V

Form-Master V
15V1G - Backdraft Finish End Mill

Ø1.000"
Cylindrical Shank
Insert with 4 indexes
.118" Max. depth of cut
Insert corner radius: 2 mm (.078")
.040" Wiping flat

Photo of Form-Master V

Form-Master V
15V1G - Backdraft Finish End Mill

Ø1.000-1.250"
TopOn Connection
Insert with 4 indexes
.118" Max. depth of cut
Insert radius: 2 mm (.078")

Photo of Form-Master V

Form-Master V
5V6G - Backdraft Finish Face Mill

Ø2.00"
11 mm Insert with 4 indexes
.118" Max. depth of cut
.040" Wiping flat
