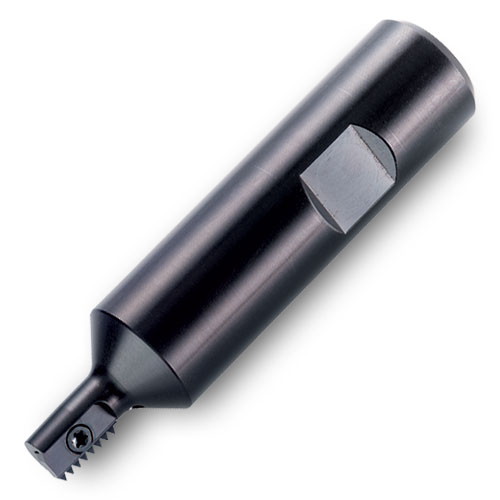

EDP: 3026116
Part: 12Y1H-0301384R02
Series: 12Y1H (12 mm)

Coolant-Thru

a

0.472

D1

0.390

D2 Shank

0.750

D3 Body Dia.

0.280

L1 Overall Length

3.350

L2 Extension Length

0.630

NOF No. of Flutes

1

Available : 0

Product Series Features:

Indexable Thread Mill Holders

Coolant-Thru

a	0.472
D1	0.390
D2 - Shank	0.750
D3 - Body Dia.	0.280
L1 - Overall Length	3.350
L2 - Extension Length	0.630
NOF - No. of Flutes	1

Choose a Section

Photo of Rapid-Thread

Rapid-Thread
BSPT (External & Internal)

BSPT thread form
B.S.21-1957

Photo of Rapid-Thread

Rapid-Thread
ISO (Internal)

ISO thread form
Full profile
DIN 13 12-1986, Class: 6H

Photo of Rapid-Thread

Rapid-Thread
NPS (External & Internal)

NPS thread form
Full profile

Photo of Rapid-Thread

Rapid-Thread
NPSF (External & Internal)

NPSF thread form
Full profile

Photo of Rapid-Thread

Rapid-Thread
NPT (External & Internal)

NPT thread form
Full profile
ANSI/ASME B1.20.1-1983

Photo of Rapid-Thread

Rapid-Thread
NPTF (External & Internal)

NPTF thread form
Full profile
ANSI/ASME B1.20.1-1976

Photo of Rapid-Thread

Rapid-Thread
UN (Internal)

UN thread form
Full profile
UN, UNF, UNEF, UNS
ANSI B1, 3M-1986, Class: 2B

Photo of Rapid-Thread

Rapid-Thread
W (External & Internal)

Whitworth thread form
Full profile
BSW, BSF, BSP
B.5.84-1956 DIN 259 Medium Class

Photo of Tool Holders

Tool Holders
BT*EM

BT MAS-403
Weldon End Mill Holder DIN 6359/DIN 1835 Form B
AD Style Coolant (coolant through the center)

Photo of Tool Holders

Tool Holders
BT*FC*EM

BT MAS-403 Face Contact
INCH Weldon End Mill Holder DIN 1835 Form B
AD Style Coolant (coolant through the center)
Balanced G2.5@25,000RPM

Photo of Tool Holders

Tool Holders
C*EM

C-Adapter (ISO 26623-1)
INCH Weldon Shank End Mill Holder
Per DIN 1835 Form B
Quick Change Holder

Photo of Tool Holders

Tool Holders
CAT*EM

CAT V-Flange
INCH Weldon Style End Mill Holder DIN 6359/1835 Form B
AD Style Coolant (coolant through the center)

Photo of Tool Holders

Tool Holders
CAT*FC*EM

CAT Face Contact
Weldon End Mill Holder DIN 1835 Form B
AD Style Coolant (coolant through the center)

Photo of Tool Holders

Tool Holders
ER*EX

ER Series DIN6499 Spring Collet
Single Diameter
.0004" Runout Tolerance
Super Finish Surface with Anti-Corrosion Protection
Recommended for improved runout & clamping torque
For use with solid shank cutting tools

Photo of Tool Holders

Tool Holders
HSKA*EM

HSK DIN69893 Form A
INCH Weldon End Mill Holder DIN6355/DIN1835 Form B

Photo of HydroMax

HydroMax
SC*HYDRO

Sealed Reduction Sleeve
For use in hydraulic milling chucks
Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)

	EDP	Part Number	ISO Number	Description	Additional Info	DXF File	STEP Light File	STEP Detailed File
	7066914	IS12	IS12	Screw, M2.5 × 0.45 × 5.8 mm, T8 Torx drive	Torque: 10-15 in lb	n/a	n/a	n/a
	7000075	DS-T08W	DS-0020	T8 Wing Style Torx Driver		n/a	n/a	n/a

Rapid Thread Line, Straight Indexable Thread Mills
