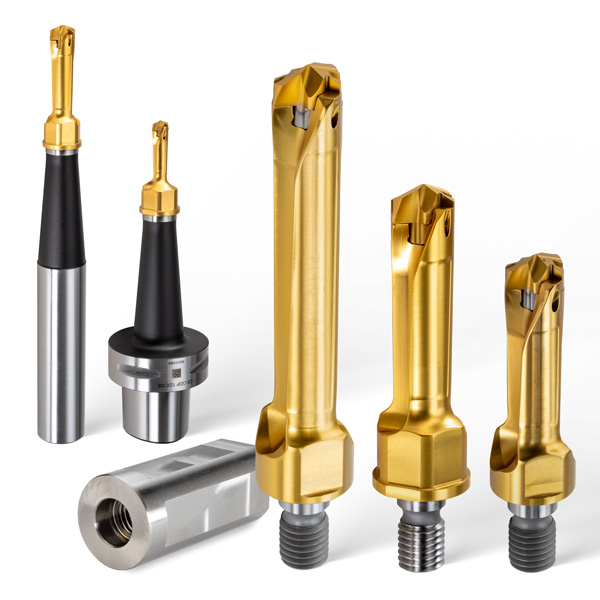

Modular Quick Change Drilling with TopOn (M12) Connection
Product Line Expansion☆ = NEW
Features and Benefits
- Bodies:
- Versatility - compatible with ALL existing TopOn (M12) holders
- Modular design reduces set-up and tool change times
- Shorter tool lengths allow for easy use on multi spindle and Swiss type machines
- Positive stop insert pocket
- Compatible with all GoldTwist indexable tips
- Multiple diameters accommodated with a single body
- Coolant thru
- Tips:
- Wide range of material specific geometries for increased productivity
- Close tolerance (+.002"/-.000") on diameter
- IN2505 (PVD TiAlN/TiN) coating for incredible performance
- IN05S (uncoated/polished) for non-ferrous specific applications
- Special diameters available upon request
Product Ranges & Details
Diameter Range
Ø.2632"–.8228" (6.0–20.9 mm)
Body
2xD ☆
3xD
4xD ☆
Adaptons
TopOn (M12)
Geometries
TPC (Self-Centering) - Steel/Cast Iron
TPA - Steel
TMA - Stainless Steel
TKA - Cast Iron
TNA - Non-Ferrous
TPF (Flat Bottom)
Grades
IN2505 (PVD TiAlN/TiN)
IN05S (uncoated/polished)
Applications:
Die & Mold, General Purpose, Aerospace, Automotive, Shipbuilding, Heat Exchangers, Agriculture
Materials:
Steel
Stainless Steel
Cast Iron
Non-Ferrous
