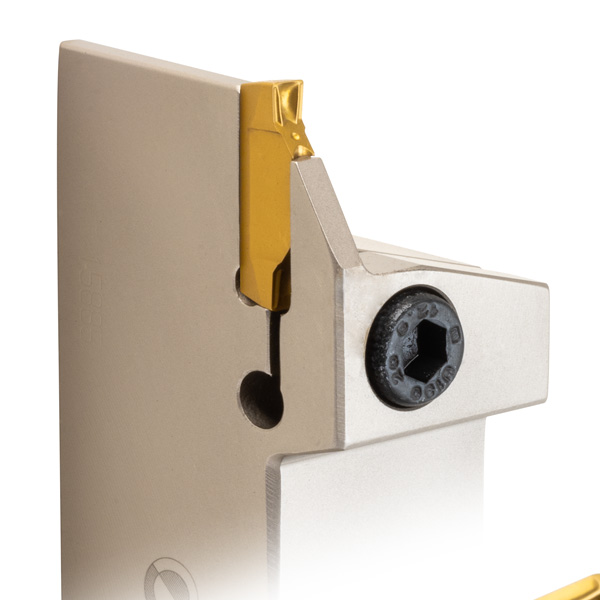

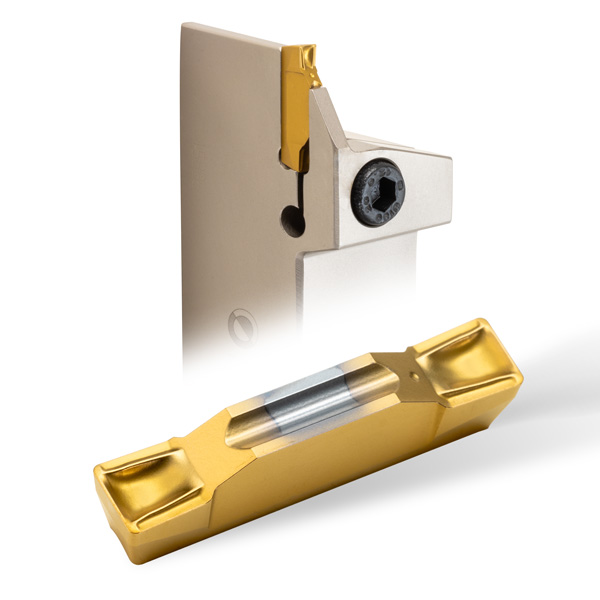

closeup shot group shot

Multi-purpose TDXC Insert for Grooving and Turning Applications

New Product Line

Features and Benefits

  • Multi-purpose chip breaker for both external and internal grooving, parting, and groove-turning applications
  • Reinforced edge allows for higher feeds when grooving (compared to TDXU)
  • Consistent machining performance, even in interrupted cuts
  • Optimized turning chip breaker according to depth of cut
  • Available in 2, 3, 4, 5 and 6 mm width sizes
  • Fully compatible with existing T-Clamp Ultra+ holders

Product Ranges & Details

Series
TDXC

Features
Double-Ended
Compatible with All T-Clamp Ultra+ Holders

Applications
External Turning, Grooving & Parting
Internal Turning & Grooving
Face Turning & Grooving

Insert Widths
2,3,4,5 & 6mm

Grades
TT6080 – PVD coated for maximum wear resistance
TT9080 – PVD coated for general purpose in a variety of materials
TT8020 – PVD coated with very tough substrate for difficult applications
K10 – uncoated for aluminum alloys and non-ferrous materials

Materials
Steel
Stainless Steel
Cast Iron
Non-Ferrous
Super Alloys
