CBN Inserts for a Wide Range of Hardened Material Machining
Product Line Expansion☆ = NEW
Features and Benefits

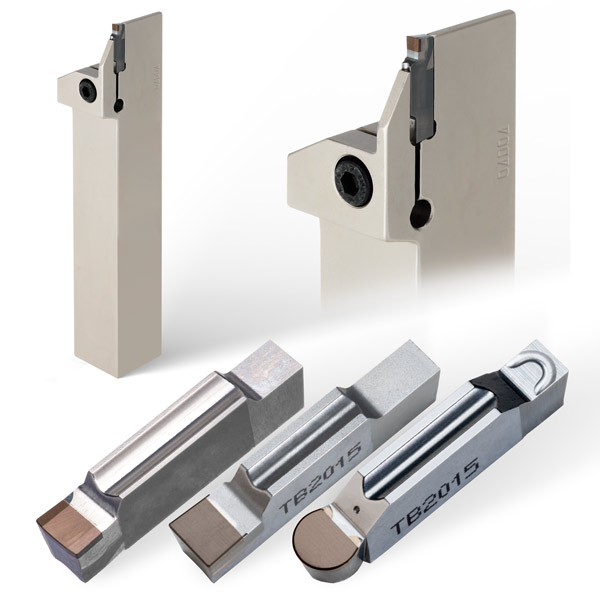

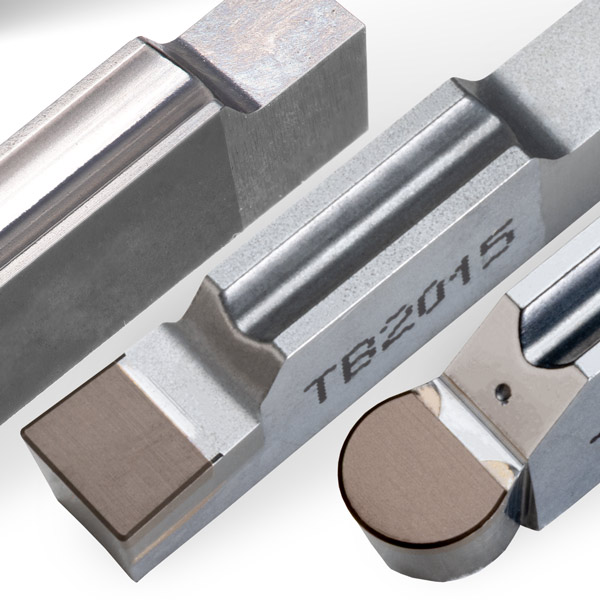

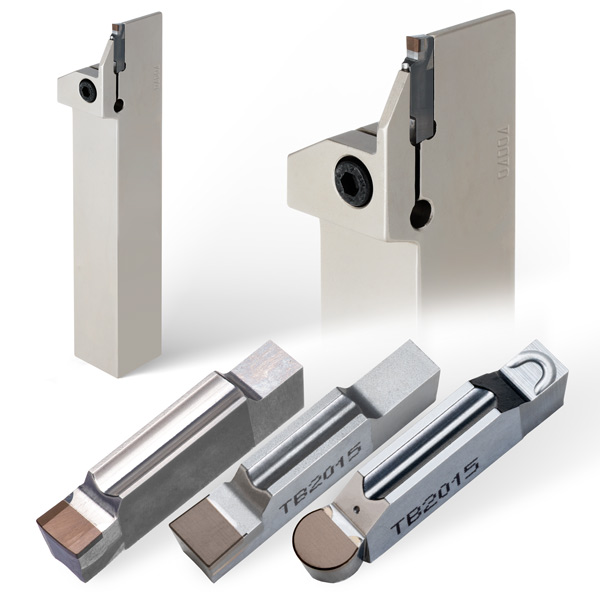

- TClamp Ultra+ inserts with CBN tips for high-feed turning, grooving, and profiling of high-hardness material
- Excellent surface finish in grooving, profiling, and high feed turning applications
- Fully compatible with all TClamp Ultra+ holders
- High-feed inserts significantly improve productivity by allowing for maximum feed rates from .031–.047 ipr
- High-feed inserts have an optimized cutting edge and inclined chip breaker for good chip control at shallow depths of cut (maximum .0047")
- TB2015 CBN grade for continuous to light interrupted machining of hardened streel
Product Ranges & Details
Series:
TSG-H ☆
TSG-H (Full-Radius) ☆
TSG-HF
Applications:
External grooving
External profiling
High-feed turning
Insert Widths:
3, 4, 5, 6, and 8
Grades:
TB2015 – CBN for continuous to lightly interrupted machining
Materials:
Hardened Steel
