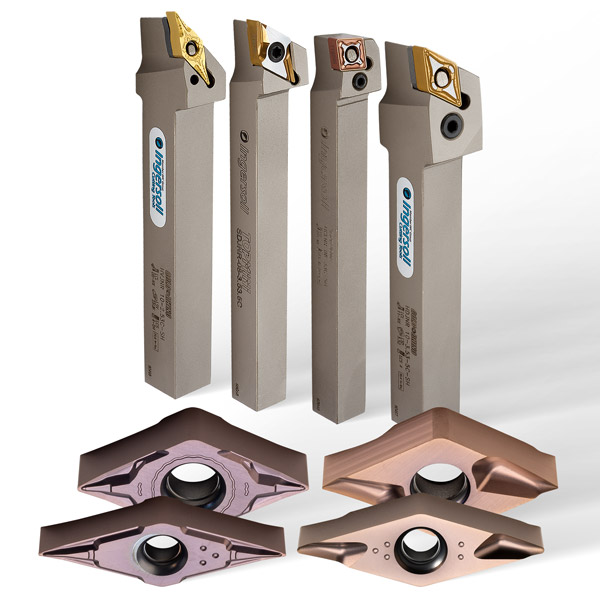

Rhino Swiss Holders for 55° and 35° Inserts, Plus New Chip Breakers
Product Line Expansion☆ = NEW
Features and Benefits
- Double sided insert for Swiss machines
- Thicker inserts provide heat dissipation through a wider cross section for longer tool life
- Hook Lever design provides very stable, multi - directional clamping
- Precision-ground inserts specifically designed for Swiss machines

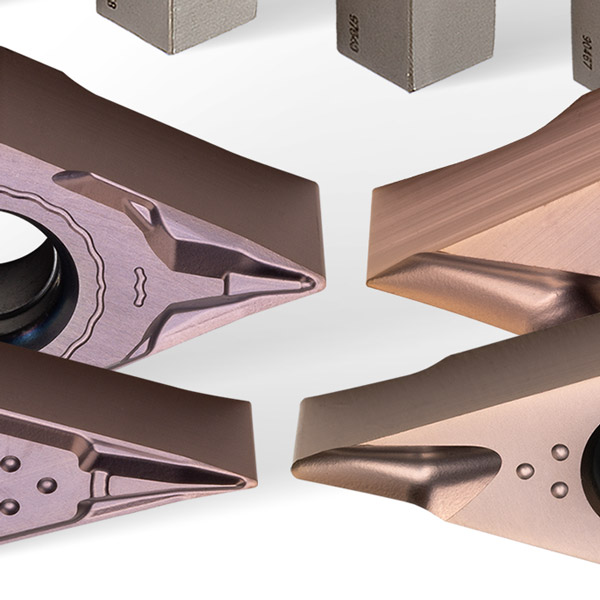

• FU chip breaker, available in a DNGG shape and for general purpose machining, has a wide operating range with respect to feed rate and depth of cut
• FS chip breaker, available in a VNGX shape for super finishing applications, has excellent chip control capability at light cutting depths and eliminates chip disposal challenges during machining
• ST chip breaker, available in DNGX and VNGX shapes, enables deeper depths of cut for roughing applications while maintaining stable cutting performance ☆ - Grades TT4410, TT4430, and TT9020, with PVD coating, provide excellent performance in Swiss type automatic lathe applications
Product Ranges & Details
Holders
Inch (.500” and .625”)
Metric (12mm and 16mm) (CNMG Holders Only)
Inserts (in ecat)
CNMG33x
CNGG33x (Peripheral Ground)
DNMG 3.53.5x
DNGG 3.53.5x (Peripheral Ground)
DNGX 3.53.5x
DNUX 3.53.5x
VNMX 2.53x
VNGX 2.53x (Peripheral Ground)
YNMG 2.53x
Refer to website & catalog for more than 500 inserts to choose from
Inserts (on this page):
DNGG 3.53.5x
DNGX 3.53.5x
VNGX 2.53x
Insert Corner Radii:
DNGG-FU: .004", .008", .016"
DNGX-ST: .004", .008", .016"
VNGX-FS: .004", .008"
VNGX-ST: .003", .004", .008", .016"
Chip Breaker Designations:
FU - Medium & General Purpose
FS - Super Finishing
ST - Maximum DOC for one-pass machining ☆
Insert Grades:
TT4410 – PVD AlTiCrN P05-P40, M05-M25, S05-S25 Maximum Wear Resistance
TT4430 – PVD AlTiCrN P20-P40, M20-M40, S20-S40 General Purpose, First Choice
TT9020 – PVD TiCN P20-P40, M20-M40 Maximum Toughness
